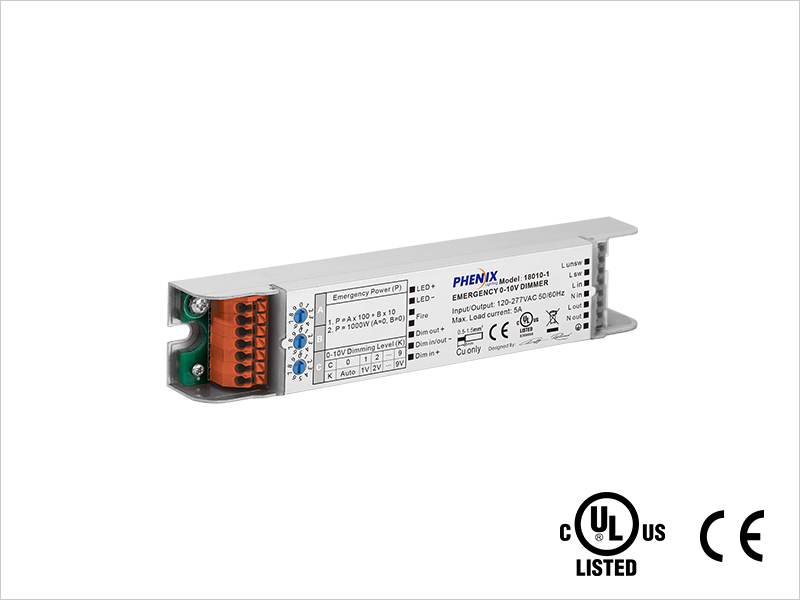

Dimmable Emergency Lighting Control Device
l
Patented APD technology allows generator or inverter supplied emergency lighting to work under auto or preset 0-10V dimming level regardless of wall switch position
l
Great energy and cost saving benefits by reduce the power consumption for the emergency lighting
l
Flexible and precise setting to distribute or make the utmost use of the power of a 10-1000W generator or inverter
l
Supports lighting load up to 5A
l
Dimmer, sensor or other lighting controls override capable
l
24VDC fire alarm override capable
l
Terminal block
l
Slim size
l
Suitable for indoor, dry and damp applications
l
Factory or field installation
18010-1
10-600W, 120V
18010-1
10-1000W, 277V
|
Type |
18010-1 |
|
Rated voltage |
120-277VAC 50/60Hz |
|
Rated current |
20mA |
|
Max. Throughput
current |
5A |
|
Input emergency
power |
10-600W@120V, 10-1000W@277V (Set by the dipswitch A and B) |
|
Output 0-10V
dimming level |
Auto dimming or preset of 1V, 2V -- 9V (Set by the dipswitch C) |
|
Max. 0-10V Load
power |
600W@120V, 1385W@277V |
|
Life time |
5 Years |
|
Operating temp |
-20-65°C (4° F- 149° F) |
|
Wire |
16-18AWG/1.0-1.5mm2 |
|
EMC& FCC IC standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 |
|
Safety standard |
|
|
Meas. mm [inch] |
L153 [6.02] x W30 [1.18] x H22 [0.87] Mounting center: 143 [5.63] |
