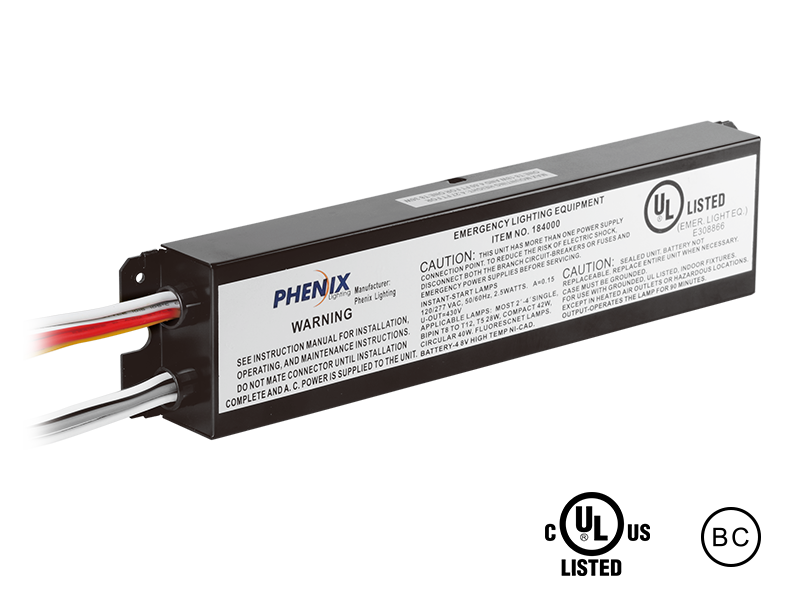

Fluorescent Emergency Ballasts
l
Perfectly compatible with most T5, T8, compact, PL and circular Type A and Type A+B LED Retrofit lamps
l
Built-in high temperature Ni-Cd battery pack

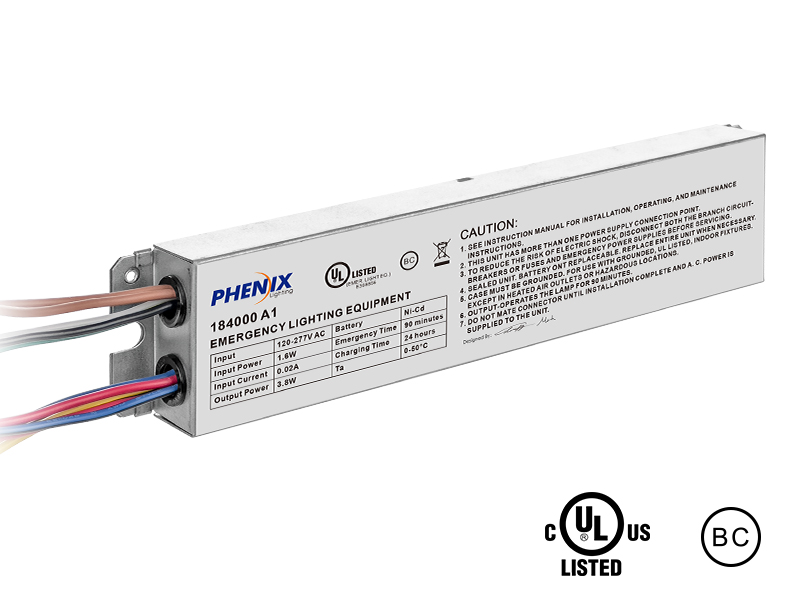

184000 A1
4W, 120-277VAC
|
Type |
184000
A1 |
|
Lamp type |
Type
A and Type A+B LED lamps |
|
Rated voltage |
120-277V
AC |
|
Rated current |
0.05A |
|
Rated power |
2W |
|
Operation frequency |
320kHz ≥ f ≥ 50kHz |
|
Power factor |
0.5 |
|
Battery |
Ni-Cd |
|
Charging time |
24
Hours |
|
Discharge time |
>90
Minutes |
|
Charging cycles |
≥500 |
|
Charging current |
110mA
|
|
Operation temperature |
0-50℃
(32°F-122°F) |
|
Output power |
Max.4W |
|
Efficiency |
80% |
|
Abnormal protection |
Inrush,
charging and discharging |
|
Wire |
18AWG/0.75 mm2 |
|
EMC& FCC IC standard |
EN 55015, EN 61547, EN 6 |
|
Safety
standard |
EN 61347-1, EN 61347-2-7,
UL924, CSA C.22.2 No. 141 |
|
Meas. mm
[inch] |
L242 [9.53] x W52 [2.05] x
H26 [1.02] Mounting Center: 230 [9.06] |
