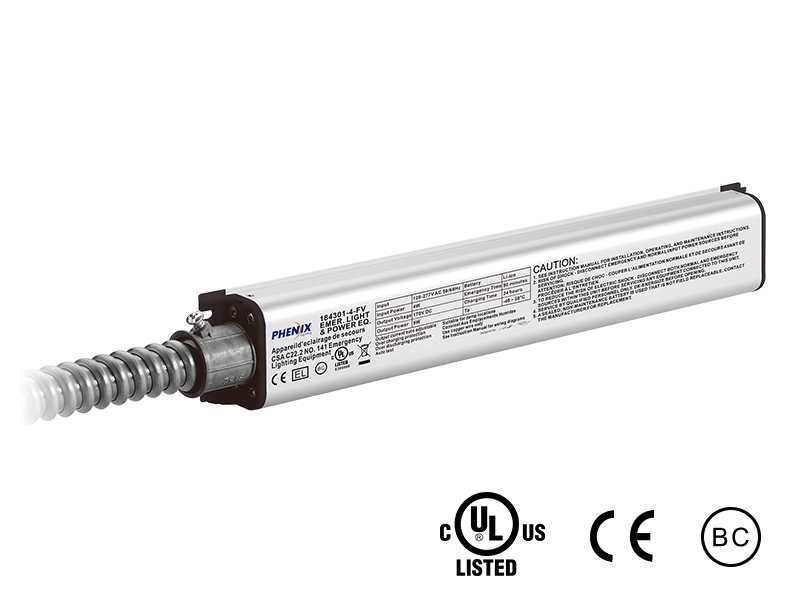

Cold Pack LED Emergency Driver
l
9W, 18W, 27W 170VDC output
l
Emergency operation in -40°C to +50°C
l
Linear version with metal conduits
l
IP20 LED Test Switch
184301-4-FV
9W,170VDC
184302-4-FV
18W,170VDC
184303-4-FV
27W,170VDC
|
Type |
184301-4-FV |
184302-4-FV |
184303-4-FV |
|
Rated
voltage |
120-277VAC
50/60Hz |
||
|
Rated
current |
0.06A |
0.1A |
0.12A |
|
Rated
power |
3.5W |
5.5W |
7.5W |
|
Power
when heating |
8W |
10W |
12W |
|
Emergency
power |
9W |
18W |
27W |
|
Output
voltage |
170VDC |
||
|
Output
current |
0.9A |
||
|
Output
current of AC driver |
5A |
||
|
Operation
frequency |
320kHz ≥ f ≥ 50kHz |
||
|
Power
factor |
0.5 |
||
|
Battery |
Li-ion |
||
|
Charging
time |
24
Hours |
||
|
Discharge
time |
>90
Minutes |
||
|
Charging
current |
0.168A |
||
|
Life
time |
5
Years |
||
|
Charging
cycles |
>1000 |
||
|
Operation
temperature |
-40-50°C (-40° F- 122° F) |
||
|
Efficiency |
80% |
||
|
Abnormal
protection |
Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit , short circuit protection with auto reset |
||
|
Wire |
0.75-1.5mm2 |
||
|
EMC/FCC/IC standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC
Part 15, ICES-005 |
||
|
Safety standard |
EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
||
|
Meas.
mm [inch] |
184301-4-FV:
L330 [12.99] x W50 [1.97] x H30 [1.18] Mounting center: 320 [12.60] |
||
|
184302-4-FV:
L395 [15.55] x W50 [1.97] x H30 [1.18] Mounting center: 385 [15.16] |
|||
|
184303-4-FV:
L460 [18.11] x W50 [1.97] x H30 [1.18] Mounting center: 450 [17.72] |
|||
