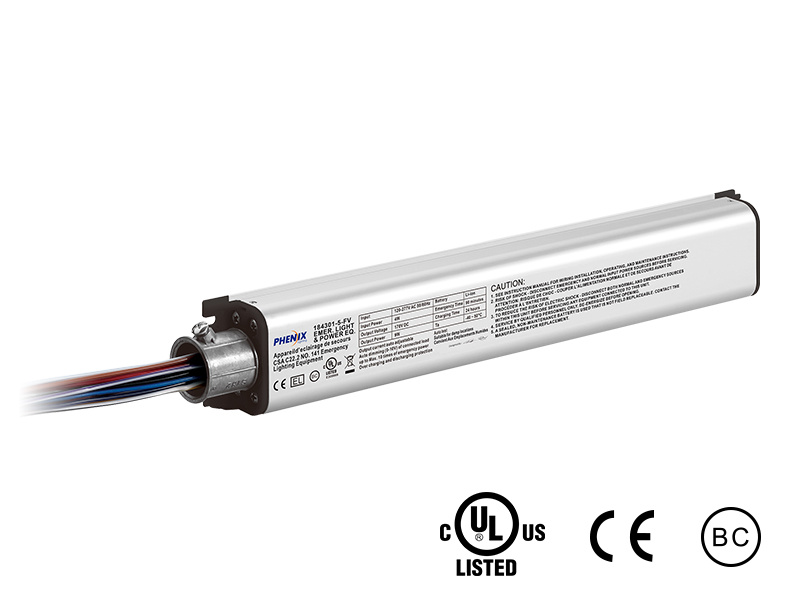

Cold Pack LED Emergency Driver
l
9W, 18W, 27W 170VDC output
l
Emergency operation in -40°C to +50°C
l
Linear version with metal conduit's head
l
IP20 LED Test Switch
184301-5-FV
9W,170VDC
184302-5-FV
18W,170VDC
184303-5-FV
27W,170VDC
|
Type |
184301-5-FV |
184302-5-FV |
184303-5-FV |
|
Rated voltage |
120-277VAC 50/60Hz |
||
|
Rated current |
0.06A |
0.1A |
0.12A |
|
Rated power |
3.5W |
5.5W |
7.5W |
|
Power when heating |
8W |
10W |
12W |
|
Emergency power |
9W |
18W |
27W |
|
Output voltage |
170VDC |
||
|
Output current |
0.9A |
||
|
Output current of AC driver |
5A |
||
|
Operation frequency |
320kHz ≥ f ≥ 50kHz |
||
|
Power factor |
0.5 |
||
|
Battery |
Li-ion |
||
|
Charging time |
24 Hours |
||
|
Discharge time |
>90 Minutes |
||
|
Charging current |
0.168A |
||
|
Life time |
5 Years |
||
|
Charging cycles |
>1000 |
||
|
Operation temperature |
-40-50°C (-40° F- 122° F) |
||
|
Efficiency |
80% |
||
|
Abnormal protection |
Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit , short circuit protection with auto reset |
||
|
Wire |
0.75-1.5mm2 |
||
|
EMC/FCC/IC standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC
Part 15, ICES-005 |
||
|
Safety standard |
EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |
||
|
Meas. mm [inch] |
184301-5-FV: L330 [12.99] x W50 [1.97] x H30 [1.18]
Mounting center: 320 [12.60] |
||
|
184302-5-FV: L395 [15.55] x W50 [1.97] x H30 [1.18]
Mounting center: 385 [15.16] |
|||
|
184303-5-FV: L460 [18.11] x W50 [1.97] x H30 [1.18]
Mounting center: 450 [17.72] |
|||
