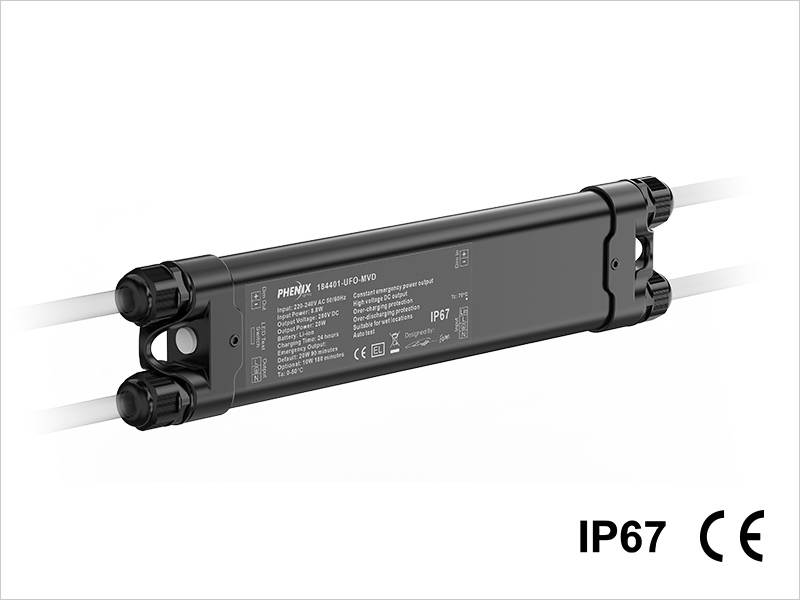

Emergency LED Driver for UFO High Bay
l
Quick wiring and installation
l
Auto dimming (0/1-10V) of connected load up to 10 times of emergency power
l
High voltage DC output
l
Constant emergency power output
l
Emergency output is convertible between 90 and 180 minutes
l
Auto Test
l
Extremely slim aluminium housing and light in weight, built-in battery
l
IP67 rating, suitable for outdoor and wet applications
184401-UFO-MVD
20W, 280VDC
|
Type |
184401-UFO-MVD |
|
Lamp type |
UFO, High Bay or
other waterproof LED luminaires |
|
Rated
voltage |
220-240VAC
50/60Hz |
|
Output voltage |
280VDC |
|
Max. Current |
0.044A |
|
Max. Power |
5W |
|
Power Factor |
0.5PF |
|
Max. Output
power |
20W |
|
Max.
power of 0-10V dimming load |
200W (The
luminaire’s minimum dimming power should be less than or equal to the Max.
Output power of LED emergency driver.) |
|
Battery |
Li-ion |
|
Charging time |
24 Hours |
|
Discharge time |
90
Minutes at full output power (or 180 minutes at half of output power) |
|
Charging current |
300mA |
|
Life time of
module |
5 Years |
|
Charging cycles |
>1000 |
|
Operation
temperature |
0-50°C(32°F-122°F) |
|
Efficiency |
80% |
|
Abnormal
protection |
Over
load, over current, inrush, over temperature, charging and discharging, open
circuit , short circuit protection with auto reset |
|
Wire |
0.75-1.5mm2 |
|
EMC/ standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3 |
|
Safety standard |
EN 61347-1, EN 61347-2-7 |
|
Meas. mm [inch] |
L253 [9.96] x W75 [2.95] x 30 [1.18]mm |
|
Purchase No. description 184401-UFO -
MVD - XXX 20W or below Input 220-240VAC
Dimmable Code No. + emergency
power |
|
