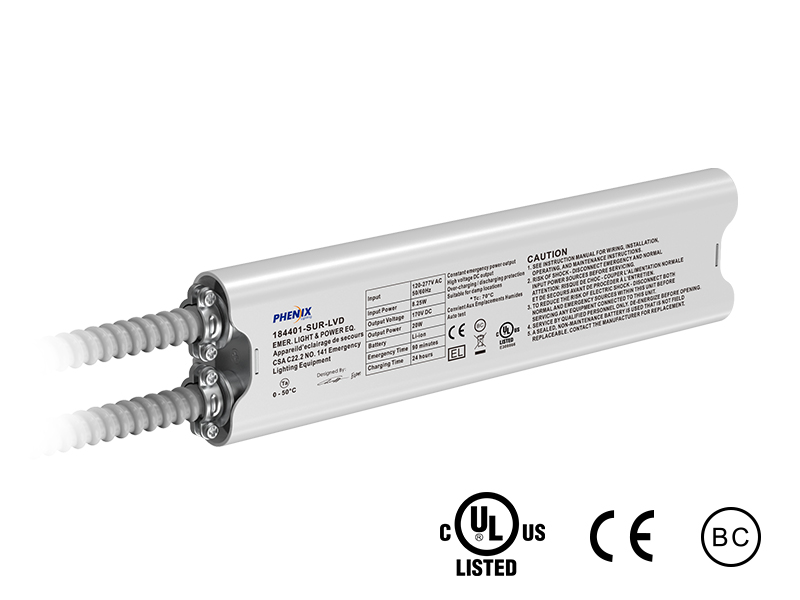

HiPower LED Emergency Driver
l
Fast wiring and installation without opening the housing of the luminaire or the emergency driver
l
Auto dimming (0-10V) of connected load up to 10 times of emergency power
l
High voltage DC output
l
Constant emergency power output
l
Emergency output is convertible between 90 and 180 minutes
l
Auto Test
l
Extremely slim aluminium housing and light in weight, built-in battery
184401-SUR-LVD-20
20W, 170VDC
184402-SUR-LVD-40
40W, 170VDC
184403-SUR-LVD-60
60W, 170VDC
|
Type |
184401-SUR-LVD-20 |
184402-SUR-LVD-40 |
184403-SUR-LVD-60 |
|
Lamp type |
LED
High-bay or UFO luminaire |
||
|
Rated voltage |
120-277VAC
50/60Hz |
||
|
Output voltage |
170VDC |
||
|
Rated current |
0.04-0.09A |
0.045-0.11A |
0.05-0.14A |
|
Rated power |
6-9W |
7.5-11W |
10-14.5W |
|
Power Factor |
>0.75@120V |
||
|
Max. Output power |
20W |
40W |
60W |
|
Max. power of 0-10V dimming load |
200W |
400W |
600W |
|
The
luminaire’s minimum dimming power should be less than or equal to the Max.
Output power of LED emergency driver. |
|||
|
Battery |
Li-ion |
||
|
Charging
time |
24
Hours |
||
|
Discharge
time |
90
Minutes |
||
|
Charging
current |
500mA |
600mA |
825mA |
|
Life
time |
5
Years |
||
|
Charging
cycles |
>1000 |
||
|
Operation temperature |
0-50°C(32°F-122°F) |
||
|
Efficiency |
85% |
||
|
Abnormal protection |
Over
load, over current, inrush, over temperature, charging and discharging, open
circuit , short circuit protection with auto reset |
||
|
Wire |
18-14AWG/0.75-2.5mm2 |
||
|
EMC/FCC/IC
standard |
FCC part 15, ICES-005 |
||
|
Safety
standard |
UL924, CSA C.22.2 No. 141 |
||
|
Meas. mm [inch] |
L280 [11.02]
x W71.1 [2.80] x 26.1 [1.03]mm
Mounting center: 270 [10.63] |
L350 [13.78]
x W71.1 [2.80] x 26.1 [1.03]mm
Mounting center: 340 13.39] |
L420 [16.54]
x W71.1 [2.80] x 26.1 [1.03]mm
Mounting center: 410 [16.14] |
