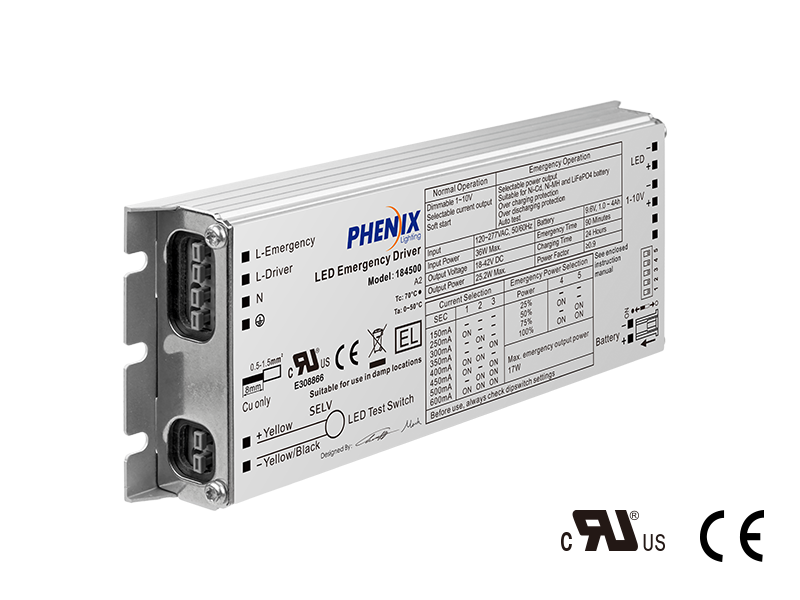

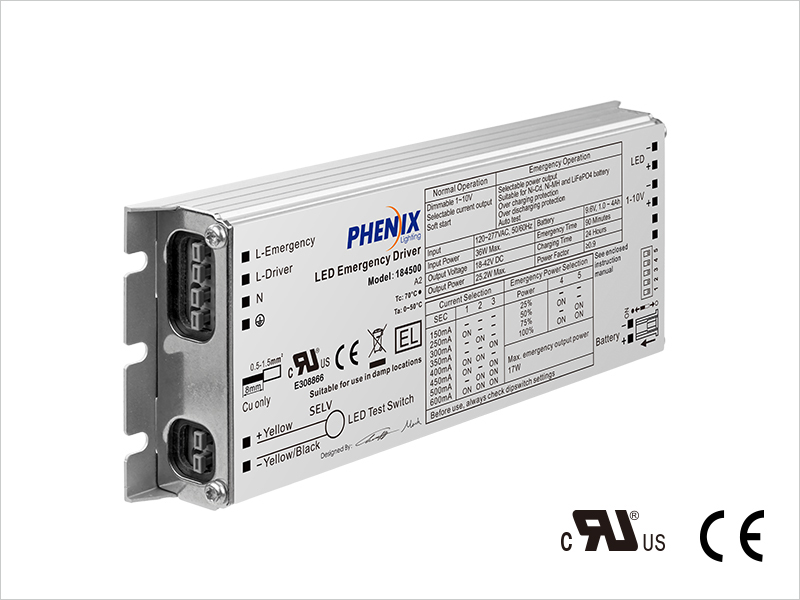

EN Integrated LED AC + Emergency Driver
l
For normal and emergency operation of LEDs, no need an extra AC LED driver
l
Constant current, multi-current selectable output
l
Normal mode LED soft start, emergency mode conversion within 0.3 seconds
l
1-10V dimmable
l
Emergency output (power and time) selectable
l
Auto Test
l
Slim aluminum housing
l
Suitable for indoor, dry and damp applications
184500-A2-EN-8C1.0
1.8W - 3 hours, 18-60VDC
184500-A2-EN-8C2.0
3.5W - 3 hours, 18-60VDC
184500-A2-EN-8C4.0
7W - 3 hours, 18-60VDC
184500-A2-EN-8C5.0
8.8W - 3 hours, 18-60VDC
|
Type |
184500-A2-EN-8C1.0 |
184500-A2-EN-8C2.0 |
184500-A2-EN-8C4.0 |
184500-A2-EN-8C5.0 |
|
Rated voltage |
120-277VAC
50/60Hz |
|||
|
Rated current |
0.15A |
0.15A |
0.16A |
0.17A |
|
Rated power |
31W
(Max.) |
32W
(Max.) |
34W
(Max.) |
36W
(Max.) |
|
Emergency
output |
1.8W
- 3 hours 2.6W
- 2 hours 3.5W
- 1.5 hours 5.3W
- 1 hour |
3.5W
- 3 hours 5.3W
- 2 hours 7W
- 1.5 hours 10.5W
- 1 hour |
7W
- 3 hours 10.5W
- 2 hours 14W
- 1.5 hours 21W
- 1 hour |
8.8W
- 3 hours 13.1W
- 2 hours 17.5W
- 1.5 hours 25.2W
- 1 hour |
|
Output voltage |
18-60VDC |
|||
|
Operation frequency |
320kHz≥f≥50kHz |
|||
|
Power factor |
≥0.9 |
|||
|
Battery |
9.6V 1.0Ah,
Ni-Cd |
9.6V 2.0Ah,
Ni-Cd |
9.6V 4.0Ah,
Ni-Cd |
9.6V 5.0Ah,
Ni-Cd |
|
Charging
time |
24 Hours |
|||
|
Discharge
time |
>90
Minutes |
|||
|
Charging
current |
0.05A
|
0.1A |
0.2A |
0.25A |
|
Life
time |
5 years |
|||
|
Charging
cycles |
>500 |
|||
|
Operation temperature |
0-50℃ (32°F-122°F) |
|||
|
Output current |
150mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 600mA
±5% |
|||
|
Efficiency |
75% |
|||
|
Abnormal protection |
Inrush,
over voltage, charging and discharging, open circuit , short circuit
protection with auto reset |
|||
|
Wire |
0.5-1.5mm2 |
|||
|
EMC standard |
EN 55015, EN 61547, EN 6 |
|||
|
Safety
standard |
EN 61347-1, EN 6 |
|||
|
Meas.
Module mm [inch] |
L175 [6.89] x W65 [2.56] x H22 [0.87] Mounting Center: 167 [6.57] |
|||
|
Meas. Battery
pack mm [inch] |
9.6V
1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67] Mounting Center: 217 [8.54] |
|||
|
9.6V 2.0Ah:
L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] Mounting Center: 184 [7.24] |
||||
|
9.6V
4.0/5.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92] |
||||
