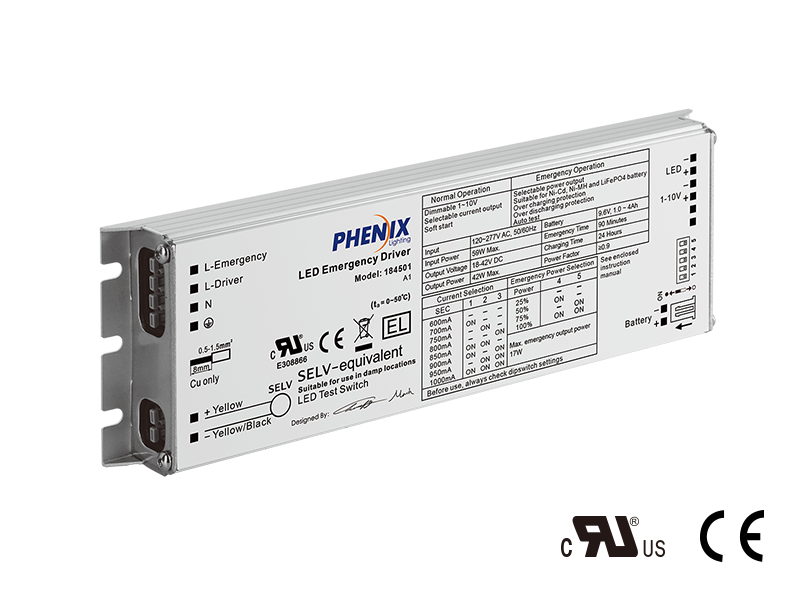

Integrated LED AC + Emergency Driver
l
For normal and emergency operation of LEDs, no need an extra LED driver
l
AC driver function in normal mode: constant current and multi-current selectable output, 0-10V dimmable
l
Four emergency output powers selectable
l
Auto Test
l
Slim aluminium housing
l
Suitable for indoor, dry and damp applications
184501-A1-8C1.0
25% (3.5W) ,18-60VDC
184501-A1-8C2.0
50% (3.5W) ,18-60VDC
184501-A1-8C4.0
75% (3.5W) ,18-60VDC
184501-A1-8C5.0
100% (3.5W) ,18-60VDC
|
Type |
184501 |
|||
|
Model |
184501-A1-8C1.0
|
184501-A1-8C2.0 |
184501-A1-8C4.0 |
184501-A1-8C5.0 |
|
Rated voltage |
120-277VAC
50/60Hz |
|||
|
Rated current |
|
|||
|
Rated power |
59W |
|||
|
Emergency
output power |
25%
(3.5W) |
50%
(7W) |
75%
(14W) |
100%
(17W) |
|
Output voltage |
18-60VDC |
|||
|
Operation frequency |
320kHz≥f≥50kHz |
|||
|
Power factor |
0.9
|
|||
|
Battery |
Ni-Cd/Ni-MH/LiFEPO4/Li-ion |
|||
|
Charging
time |
24 Hours |
|||
|
Discharge
time |
>90
Minutes |
|||
|
Charging
current |
0.05-0.25A |
|||
|
Life
time |
5 years |
|||
|
Charging
cycles |
>500 |
|||
|
Operation temperature |
0-50℃ (32°F-122°F) |
|||
|
Output current |
600mA, 700mA, 750mA, 800mA, 850mA, 900mA,950mA, 1000mA
±5% |
|||
|
Efficiency |
75% |
|||
|
Abnormal protection |
Inrush,
over voltage, charging and discharging, open circuit , short circuit
protection with auto reset |
|||
|
Wire |
0.75-1.5mm2 |
|||
|
EMC/FCC/IC
standard |
EN 55015, EN 61547, EN 6 |
|||
|
Safety
standard |
EN 61347-1,EN 6 |
|||
|
Meas.
Module mm [inch] |
L195 [7.68] x W65 [2.56] x H22 [0.87] Mounting Center: 187 [7.36] |
|||
|
Meas. Battery
pack mm [inch] |
9.6V 1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67]
Mounting Center: 217 [8.54] 9.6V 1.5/2.0Ah: L195 [7.68] x W45.5 [1.79] x H24.5
[0.96] Mounting Center: 184 [7.24] 9.6V
4.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92] |
|||
