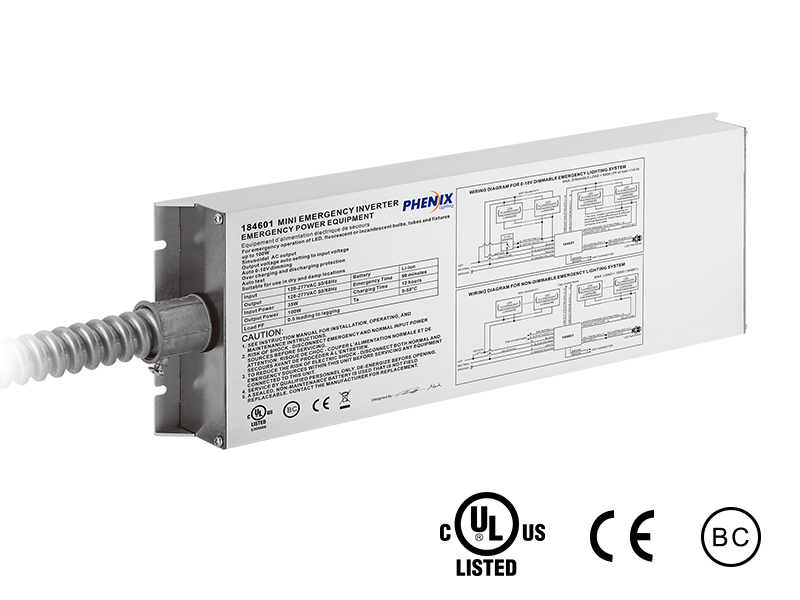

Mini Emergency Inverter
l
Pure sinusoidal AC output
l
Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode
l
Output voltage auto setting according to different input voltages
l
Auto Test
l
Extremely slim aluminium housing and light in weight
l
Suitable for indoor, dry and damp applications
184601
100W, 120-277VAC 50/60Hz
|
Type |
184601 |
|
Lamp
type |
LED,
fluorescent or incandescent bulbs, tubes and lighting fixtures |
|
Rated
voltage |
120-277VAC
50/60Hz |
|
Rated
current |
0.48A@120V |
|
Rated
power |
35W |
|
Power
factor |
0.5
leading to lagging |
|
Output
voltage |
120-277VAC
50/60Hz |
|
Output
power |
100W |
|
Max.
power of 0-10V dimming load |
900W |
|
Battery |
Li-ion |
|
Charging
time |
12
Hours |
|
Discharge
time |
90
Minutes |
|
Charging
current |
0.6A |
|
Lifetime |
5
Years |
|
Charging
cycles |
>1000 |
|
Operation
temperature |
0-50℃
(32°F -122°F) |
|
Efficiency |
84% |
|
Abnormal
protection |
Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit , short circuit protection with auto reset |
|
Wire |
16-18AWG/0.75-1.5mm2 |
|
EMC/FCC/IC standard |
EN
55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005 |
|
Safety standard |
|
|
Meas.
mm [inch] |
L346
[13.63] x W115 [4.53] x H41.5 [1.63] Mounting center: 338 [13.31] |
