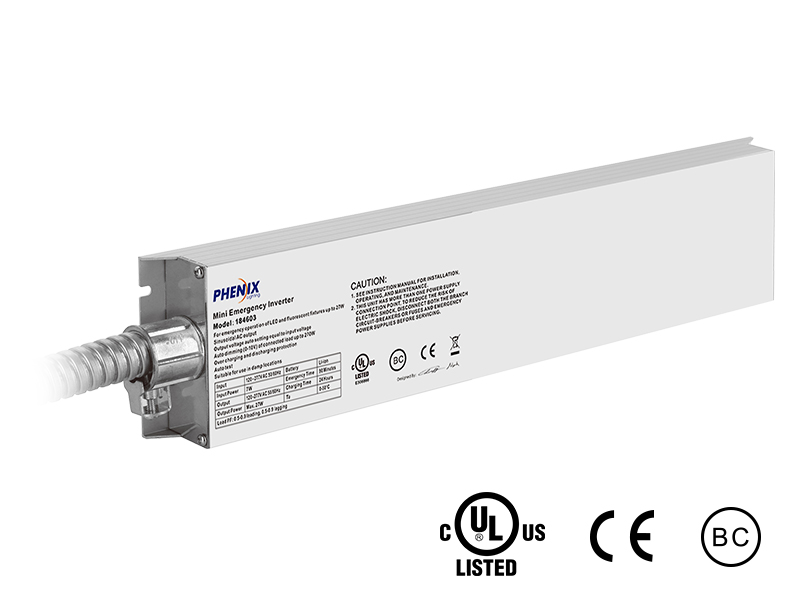

Mini Emergency Inverter
l
Pure sinusoidal AC output
l
For emergency operation of LED and fluorescent fixtures up to 27W
l
Auto dimming (0-10V) of connected load up to 270W
l
Auto Test
l
Extremely slim aluminium housing and light in weight
l
Suitable for indoor, dry and damp applications
184603
27W, 120-277VAC 50/60Hz
|
Type |
184603 |
|
Lamp type |
LED, fluorescent or incandescent bulbs, tubes and
lighting fixtures |
|
Rated voltage |
120-277VAC 50/60Hz |
|
Rated current |
0.1A |
|
Rated power |
7W |
|
Power factor |
0.5-0.9 leading, 0.5-0.9 lagging |
|
Output voltage |
120-277VAC 50/60Hz |
|
Output power |
27W |
|
Max. power of 0-10V dimming load |
270W |
|
Battery |
Li-ion |
|
Charging time |
24 Hours |
|
Discharge time |
90 Minutes |
|
Charging current |
0.34A (Max.) |
|
Life time of module |
5 Years |
|
Charging cycles |
>1000 |
|
Operation temperature |
0-50℃ (32°F-122°F) |
|
Efficiency |
80% |
|
Abnormal protection |
Over load, over current, inrush, over voltage, over temperature, charging and discharging, open circuit , short circuit protection with auto reset |
|
Wire |
18AWG/0.75mm2 |
|
EMC/FCC/IC standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC
part 15, ICES-005 |
|
Safety standard |
|
|
Meas. mm [inch] |
L346 [13.62]xW82 [3.23]xH30 [1.18] Mounting center:
338 [13.31] |
