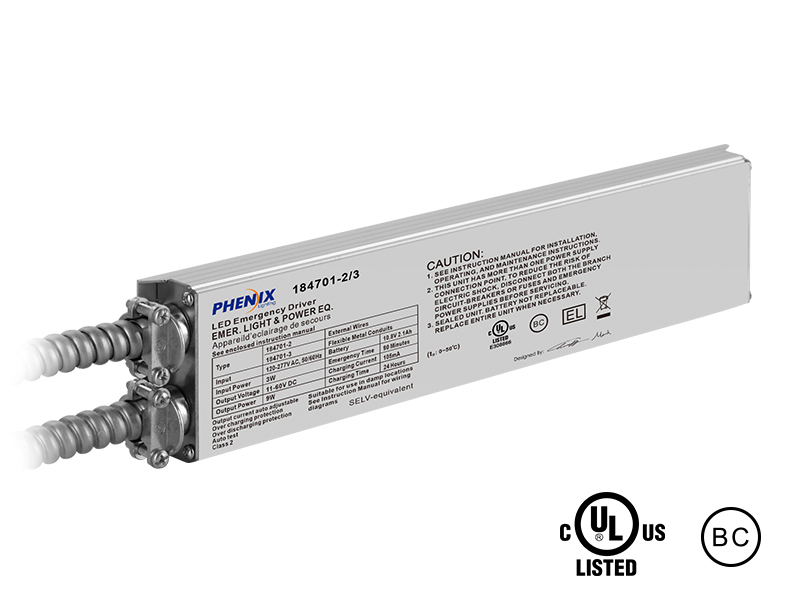

Class 2 0utput LED Emergency Driver
l
Emergency operation of LED luminaires, for both factory and field installation
l
Perfectly compatible with most AC LED drivers
l
Constant emergency power output: Class 2 output voltage (10-60V), output current auto adjustable
l
External wires with metal conduits Built-in Battery, UL Listed
l
Auto Test
l
Slim aluminum housing
l
Suitable for indoor, dry and damp applications
184700-3
5W,10-60VDC
184701-3
9W, 11-60VDC
184702-3
15W, 15-60VDC
184703-3
25W, 25-60VDC
|
Type |
184700-3 |
184701-3 |
184702-3 |
184703-3 |
|
Rated voltage |
120-277VAC
50/60Hz |
|||
|
Rated current |
0.04A |
0.05A |
0.07A |
0.1A |
|
Rated power |
2W |
3W |
4.5W |
5.5W |
|
Emergency
output power |
5W |
9W |
15W |
25W |
|
Output voltage |
10-60VDC |
11-60VDC |
15-60VDC |
25-60VDC |
|
Output current |
1
A (Max.) |
|||
|
AC driver output current |
5
A (Max.) |
|||
|
Operation frequency |
320kHz ≥ f ≥ 50kHz |
|||
|
Power factor |
0.5 |
|||
|
Battery |
Ni-MH/Li-ion |
|||
|
Charging
time |
24
Hours |
|||
|
Discharge
time |
>90
Minutes |
|||
|
Charging
current |
0.08A |
0.11A |
0.19A |
0.23A |
|
Life
time |
5 years |
|||
|
Charging
cycles |
>500 |
|||
|
Operation temperature |
0-50℃
(32°F-122°F) |
|||
|
Efficiency |
80% |
|||
|
Abnormal protection |
Inrush,
over voltage, charging and discharging, open circuit , short circuit
protection with auto reset |
|||
|
Wire |
0.75-1.5mm2 |
|||
|
EMC/FCC/IC
standard |
EN55015, EN61547, EN61000-3-2, EN61000-3-3, FCC
part 15, ICES-005 |
|||
|
Safety
standard |
EN61347-1, EN61347--2-7,UL924,CSA C.22.2 No. 141 |
|||
|
Meas. 18470X-3mm [inch] |
184700-3: L260 [10.24]
x W65 [2.56] x H22 [0.87] Mounting center: 252 [9.92] |
|||
|
184701-3:
L307 [12.09] x W65 [2.56] x H22 [0.87] Mounting center: 299 [11.77] |
||||
|
184702-3:
L372 [14.65] x W65 [2.56] x H22 [0.87] Mounting center: 364 [14.33] |
||||
|
184703-3: L358 [14.09]
x W82 [3.23] x H30 [1.18]
Mounting center: 351 [13.82] |
||||
