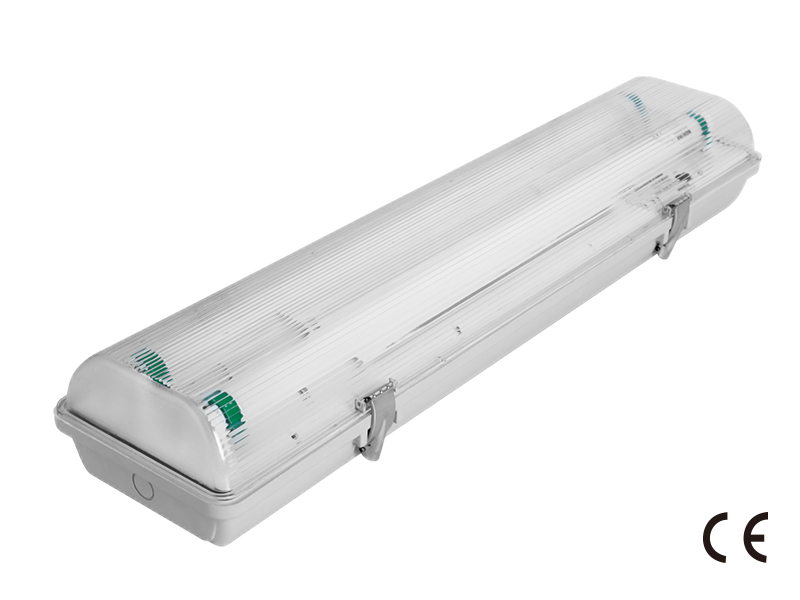

IP65 Waterproof Light
l
Housing made of reinforced polyester glass fiber (GRP)
l
High transparent and impact resistant PC diffuser
l
Both standard and emergency modes available
l
Operation and survive in extremely cold temperature down to minus 40 degrees (-40°C /-40°F)
l
CE EMC, CE LVD approved
l
With Philips or equivalent brands fluorescent lamps and electronic ballast EEI=A2
l
IP65 rating
FL02H218-2
36W, 220-240VAC
FL02I218-2
42W, 220-240VAC
FL02H218-2-H
36W (76W Heater Works), 220-240VAC
FL02J218-2
42W (84WHeater Works), 220-240VAC
FL02H236-2
72W, 220-240VAC
FL02I236-2
75W, 220-240VAC
FL02H236-2-H
72W (112WHeater Works), 220-240VAC
FL02J236-2
75W (115WHeater Works), 220-240VAC
2X18W
|
Item no. |
FL02H218-2 |
FL02I218-2 |
FL02H218-2-H |
FL02J218-2 |
|
GE part number |
109W1982P005 |
109W1982P006 |
109W1982P007 |
109W1982P008 |
|
Characteristics |
2x18W
Light, Standard Weather (SW) |
2x18W
Light, Emergency Backup, SW |
2x18W
Light, Heater, Cold Weather (CW) |
2x18W
Light, Emergency Backup and Heater, CW |
|
Lamp type |
Fluorescent
Lamp T8 2x18W |
|||
|
Rated voltage |
220-240VAC
50/60Hz |
|||
|
Input
power |
36W |
42W |
36W |
42W |
|
76W
(Heater Works) |
84W
(Heater Works) |
|||
|
Input
current |
0.19-0.13A |
0.20-0.14A |
0.19-0.13A |
0.20-0.14A |
|
0.32-0.35
(Heater Works) |
0.35-0.38
(Heater Works) |
|||
|
Power factor |
>0.98 |
>0.95 |
>0.98 |
>0.95 |
|
Battery voltage |
/ |
1.8Ah,
4.8V |
/ |
1.8Ah,
4.8V |
|
Charging time |
/ |
24H |
/ |
24H |
|
Discharge time |
/ |
>90
minutes |
/ |
>90
minutes |
|
Operation
temperature |
-15~50℃ |
-15~50℃ |
-30~50℃ |
-30~50℃ |
|
Survival
temperature |
-20~60℃ |
-20~60℃ |
-40~60℃ |
-40~60℃ |
|
Lumen
output |
1800LM |
|||
|
Battery life
time |
/ |
5
years |
/ |
5
years |
|
Abnormal
protection |
short-circuit
Protection with auto-reset |
|||
|
Applicable
standards |
EN60598-1,
EN60598-2-1, EN61347-1, EN61347-2-7, EN55015, EN61000-3-2, EN61000-3-3,
EN61547, IEC60721-3-3; IEC60721-3-3 class 3C1, class 3Z7 & class 3S1 |
|||
|
Item No |
FL02I236-2 |
FL02J236-2 |
||
|
GE part No. |
|
|
108W9547P006 108W9547P008 |
108W9547P004 108W9547P005 |
|
Characteristics |
2x36W Light,
Standard，Standard Weather
(SW) |
2x36W Light, Emergency Backup, SW |
2x36W Light,
Heater, Cold Weather (CW) |
2x36W Light, Emergency Backup and
Heater, CW |
|
Lamp type |
Fluorescent Lamp
T8 2x36W |
|||
|
Input voltage |
220-240VAC
50/60Hz |
|||
|
Input power |
72W |
75W |
72W |
75W |
|
112W (Heater
Works) |
115W (Heater
Works) |
|||
|
Input current |
0.30-0.33A |
0.31-0.34A |
0.30-0.33A |
0.31-0.34A |
|
0.47-0.51A (Heater Works) |
0.48-0.52A (Heater Works) |
|||
|
Power factor |
>0.98 |
>0.95 |
>0.98 |
>0.95 |
|
Battery voltage |
- |
1.8Ah, 4.8V |
- |
1.8Ah, 4.8V |
|
Charging time |
- |
24H |
- |
24H |
|
Emergency time |
- |
>90 Minutes |
- |
>90 Minutes |
|
Operation temperature |
-15~50℃ |
-15~50℃ |
-30~50℃ |
-30~50℃ |
|
Survival temperature |
-20~60℃ |
-20~60℃ |
-40~60℃ |
-40~60℃ |
|
Lumen output |
3600LM |
|||
|
Battery life
time |
- |
5 years |
- |
5 years |
|
Abnormal protection |
short-circuit
Protection with auto-reset |
|||
|
Applicable standards |
EN60598-1, EN6 |
|||
