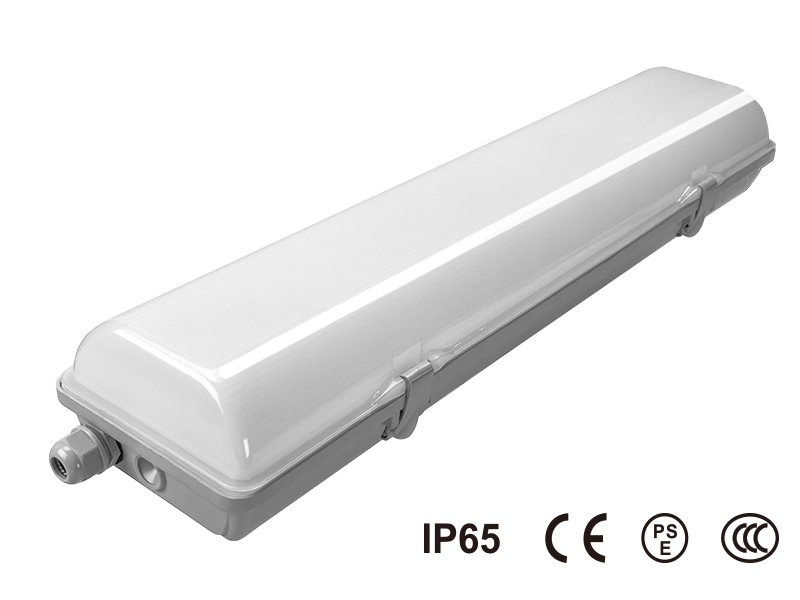

IP65 Waterproof Light
l
Housing made of glass fiber reinforced polyester (GRP)
l
High light transmittance frosted PC diffuser with UV and impact resistant
l
Both standard and emergency versions are available
l
Automatic heating system for emergency operations in wide temperatures from -35°C (-31°F) to +55°C (131°F)
l
Ideal for wind towers, platforms and nacelles in onshore windmills
LL02H210
23W, 100-277V
LL02I210
23W, 100-277V
LL02J210
23W (30.5W Heating), 100-277V
LL02H218
45W, 100-277V
LL02I218
45W, 100-277V
LL02J218
45W (52.5W Heating), 100-277V
|
Product name |
PROOF ST 2FT |
PROOF EM 2FT |
PROOF EH 2FT |
PROOF ST 4FT |
PROOF EM 4FT |
PROOF EH 4FT |
|
Item No. |
LL02H210 |
LL02I210 |
LL02J210 |
LL02H218 |
LL02I218 |
LL02J218 |
|
Description |
Light, LED,
Standard SW/CW |
Light, LED, Emergency backup, SW |
Light, LED,
Emergency backup,Heating system, SW/CW |
Light, LED,
Standard SW/CW |
Light, LED,
Emergency backup, SW |
Light, LED,
Emergency backup,Heating system, SW/CW |
|
Input voltage |
100-277V 50/60Hz |
|||||
|
Input power |
23W |
23W |
23W |
45W |
45W |
45W |
|
30.5W Heating |
52.5W Heating |
|||||
|
Nominal current |
0.19A |
0.19A |
0.19A |
0.38A |
0.38A |
0.38A |
|
0.26A |
0.44A |
|||||
|
Operation temp. |
-35~55°C |
-5~55°C |
-35~55°C |
-35~55°C |
-5~55°C |
-35~55°C |
|
Survival temp. |
-40~60°C |
-15~60°C |
-40~60°C |
-40~60°C |
-15~60°C |
-40~60°C |
|
Lamp type |
LED SMD,
4000-6000K |
|||||
|
Normal lumen
output |
2100LM |
2100LM |
2100LM |
3700LM |
3700LM |
3700LM |
|
Emergency lumen
output |
N/A |
500LM |
500LM |
N/A |
1000LM |
1000LM |
|
Emergency time |
N/A |
90 Minutes |
90 Minutes |
N/A |
90 Minutes |
90 Minutes |
|
Expected battery
life |
N/A |
7-10 Years |
7-10 Years |
N/A |
7-10 Years |
7-10 Years |
|
Battery full
charge |
N/A |
24 Hours |
24 Hours |
N/A |
24 Hours |
24 Hours |
|
Meas. mm |
L 670 x W 161 x
H 102, Mounting center: 400 |
L 1275 x W 161 x
H 102, Mounting center: 984 |
||||
