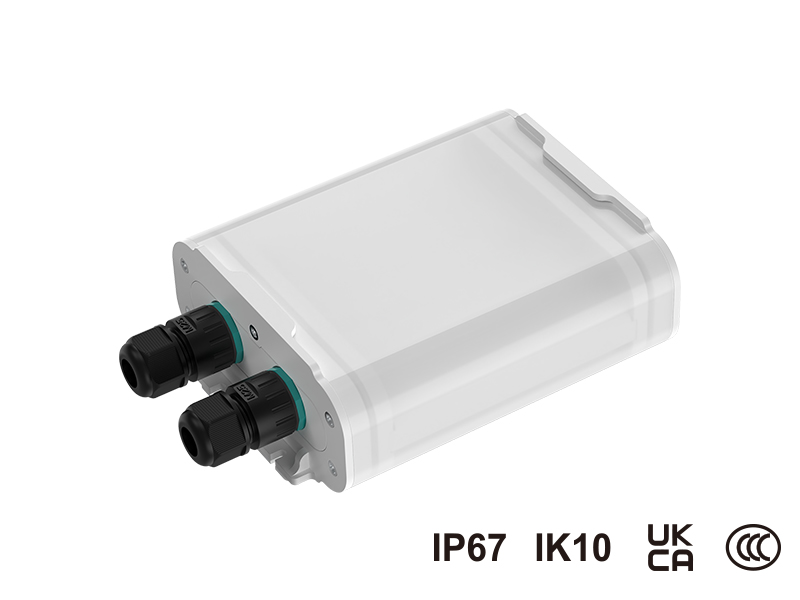

IP67 Waterproof Light
l
Small size, high lumen output, ideal for compact space
l
Working in normal and emergency modes from -40°C (-40°F) to +55°C (131°F), and 90 minutes emergency time is assured
l
Housing made of high impact and UV resistant PC. Endcap made of thermal conductive nylon
l
C5M anticorrosive, IEC 60721-3-3 3M5 vibration resistant
l
IP68 quick connectors allow a fast wiring connection without needing open the lights
l
Battery can be easily tested and disconnected by pressing the exposed LED test switch on the endcap
l
Automatic testing to minimize maintenance cost after installation
l
Ideal for towers, platforms, lifts, nacelles and hubs in onshore and offshore windmills
LL17H08
8W, 100-277VAC
LL17J10
8W (10W Charging) (20W Charging + Heating), 100-277VAC
LL17H22
22W, 100-277VAC
LL17J24
22W (24W Charging) (33W Charging + Heating), 100-277VAC
|
Product name |
SPR ST 200 |
SPR EH 200 |
SPR ST 300 |
SPR EH 300 |
|
Item No. |
LL17H08 |
LL17J10 |
LL17H22 |
LL17J24 |
|
Description |
Light, LED, Standard, SW/CW |
Light, LED, Emergency backup, SW/CW |
Light, LED, Standard, SW/CW |
Light, LED, Emergency backup, SW/CW |
|
Input voltage |
100-277VAC 50/60Hz |
|||
|
Input power |
8W |
8W |
22W |
22W |
|
10W (Charging) |
24W (Charging) |
|||
|
20W (Charging + Heating) |
33W (Charging + Heating) |
|||
|
Nominal current |
0.08A |
0.08A |
0.22A |
0.22A |
|
0.10A |
0.24A |
|||
|
0.20A |
0.33A |
|||
|
Operation temp. |
-40~55°C |
|||
|
Survival temp. |
-45~60°C |
|||
|
Lamp type |
LED SMD, 4000-6000K |
|||
|
Normal lumen output |
900LM |
900LM |
3000LM |
3000LM |
|
Emergency lumen output |
N/A |
900LM |
N/A |
1000LM |
|
Emergency time |
N/A |
90 Minutes |
N/A |
90 Minutes |
|
Expected battery life |
N/A |
7-10 Years |
N/A |
7-10 Years |
|
Battery full charge |
N/A |
24 Hours |
N/A |
24 Hours |
|
Meas. mm |
L200 x W150 x H66, Mounting center: 192 / 100 |
L300 x W150 x H66, Mounting center: 292 / 180 |
||
