Good quality Cold Emergency - Class 2 Output Led Emergency Driver 18470X-X – Phenix Detail:

18470X-1 Class 2 Output LED Emergency Driver, 5W, 9W, 15W, 25W

184700-1 5W Class 2 Output LED Emergency Driver with terminal block and external battery
184701-1 9W Class 2 Output LED Emergency Driver with terminal block and external battery
184702-1 15W Class 2 Output LED Emergency Driver with terminal block and external battery
184703-1 25W Class 2 Output LED Emergency Driver with terminal block and external battery

The series is UL class 2 output certified, which makes it easier for the luminaire to be UL certified, and the flammability grade of the luminaire‘s housing can be reduced to HB.
Class 2 output voltage from 10-60V, Constant emergency power output, output current auto adjustable.

CSA and UL listed for field installation, CEC Title 20 approved.

With external terminal block for flexible wiring connection. External battery pack can be replaced conveniently. One module can match with different types of the designated battery packs, and by setting dipswitches, end users can get the preferred emergency power and emergency time easily.

Typical application: Suitable for indoor, dry and damp applications. Small height is ideal for slim LED lighting fixtures. For installed inside the lighting fixtures e.g. LED Ceiling light, LED panel light, LED Wrapround light and etc.

Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta).

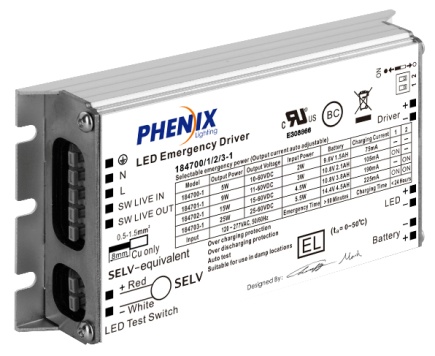

xzcs

1. Emergency operation of LED luminaires, for both factory and field installation.
2. Perfectly compatible with most AC LED drivers.
3. Constant emergency power output: Class 2 output voltage (10-60V), output current auto adjustable.
4. Various emergency power options:

18470X	Emergency power
184700	5W
184701	9W
184702	15W
184703	25W

5. Various connection options:

Type	Connection way	UL approval
18470X-1	Terminal block, External Battery	cULus Recognized
18470X-2	External wire, Built-in Battery	cULus Listed
18470X-3	External wires with metal conduits, Built-in Battery	cULus Listed

6. Auto Test
7. Slim aluminum housing
8. Suitable for indoor, dry and damp applications

Product detail pictures:
