Integrated Fluorescent Ac + Emergency Ballast 184009

5 views

Short Description:

184009 CE/UL Integrated Fluorescent AC + Emergency Ballast 500LM with replaceable battery pack. Perfectly compatible with T8 2-4’ 2x17W, 2x18W, 1x17W, 1x18W, 1x32W, 1x36W fluorescent lamps.

  • 01
  • 04

Features

Characteristics

Model Dimensions

Wiring Diagrams

Product Tags

fvbg1

1.For normal and emergency operation of fluorescent lamps, no need an extra electronic ballast.

2.Normal and emergency mode conversion within 0.3 seconds.

3.Built-in battery pack replaceable.

4.Aluminum housing.


  • Previous:
  • Next:

  • Type 184009
    Lamp type T8 2x17W, 2x18W, 1x17W, 1x18W, 1x32W, 1x36W
    Rated voltage 120-277VAC 50/60Hz
    Rated current 0.44A
    Rated power 44W
    Operation frequency 320kHzf50kHz
    Power factor >0.9
    Battery Ni-Cd
    Charging time 24 Hours
    Discharge time >90 minutes
    Charging current 0.13(Max.)
    Life time 5 years
    Charging cycles >500
    Operation temperature 0-50 (32°F-122°F)
    Initial lumen output 500LM
    Efficiency 70%
    Abnormal protection Over voltage, over current, Inrush current limiting, short circuit, open circuit
    Wire 0.75-1.5mm2
    EMC& FCC IC standard EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 18; ICES-005
    Safety standard EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141
    Meas. mm [inch] L250 [9.84] x W65 [2.56] x H28.5 [1.12] Mounting Center: 242 [9.53]

    184009

    <493A5C4C4A572D30352D32305CD2BBCCE5CABDD3A6BCB1D5F2C1F7C6F72D313

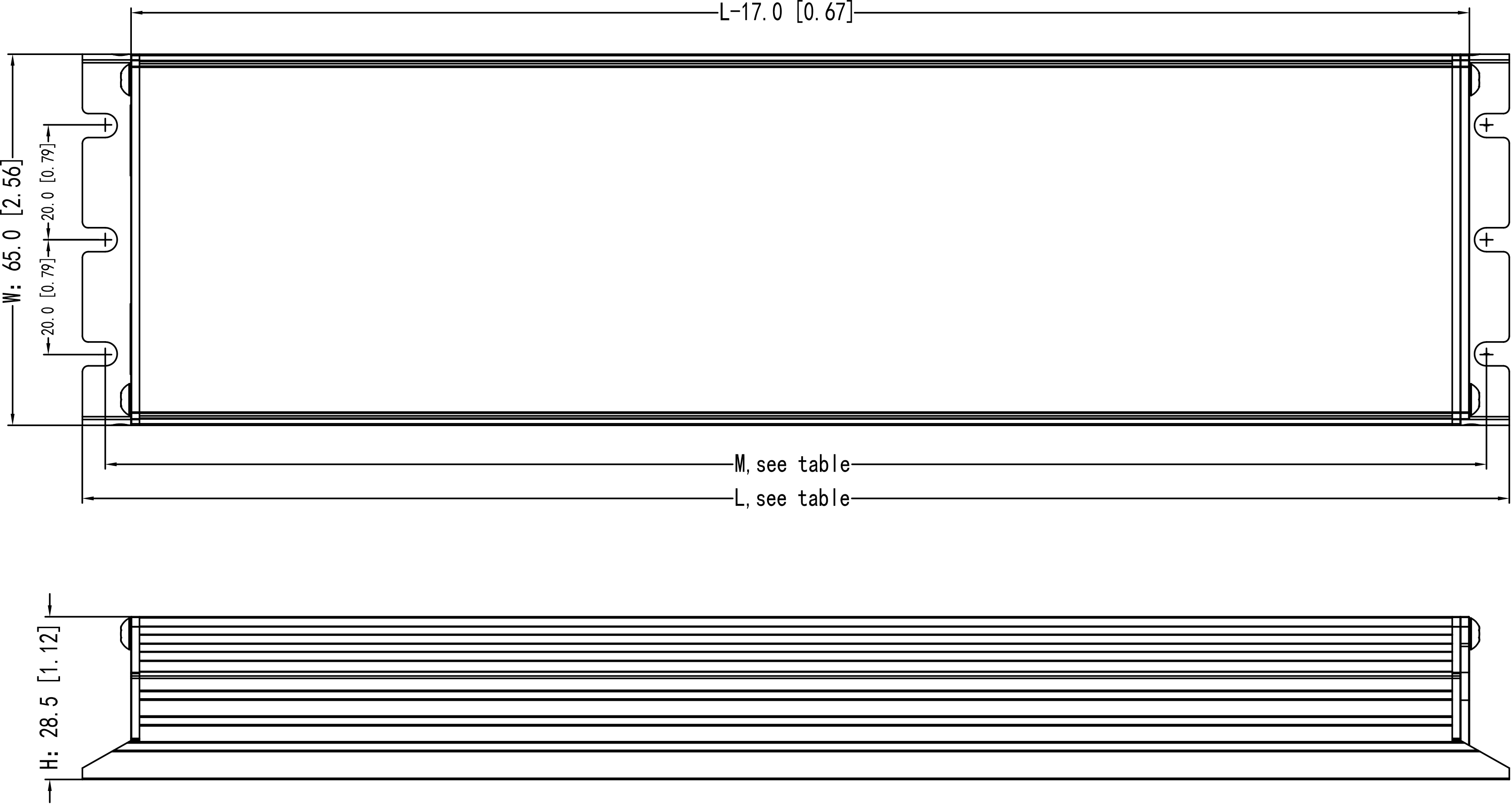

    Item No. mm [inch] M mm [inch] W mm [inch] H mm [inch]
    184009   250 [9.84] 242 [9.53] 65 [2.56] 28.5 [1.12]

    Dimension unit: mm [inch]
    Tolerance: ±1mm [0.04"]

    <493A5C4C4A572D30352D32305C323031362E30382E31355C3138363030C7FDB

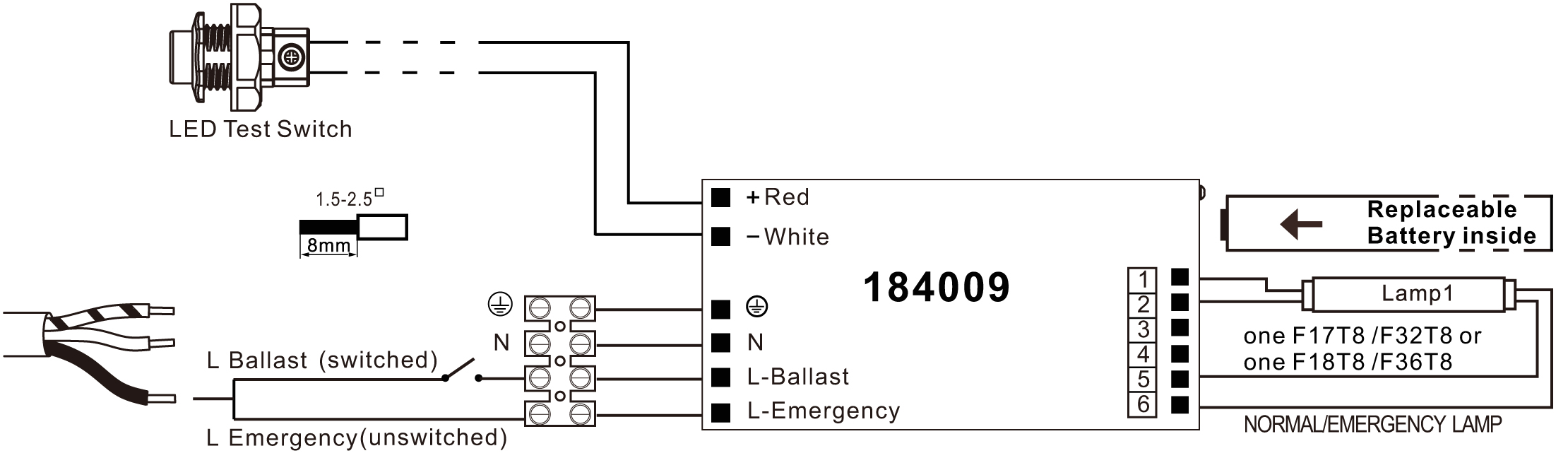

    FOR ONE LAMP

    184009 Ó¦¼±µÆ½ÓÏßͼ ²»×¢Ã÷½ÓÏßÑÕÉ«-20140819.cdr

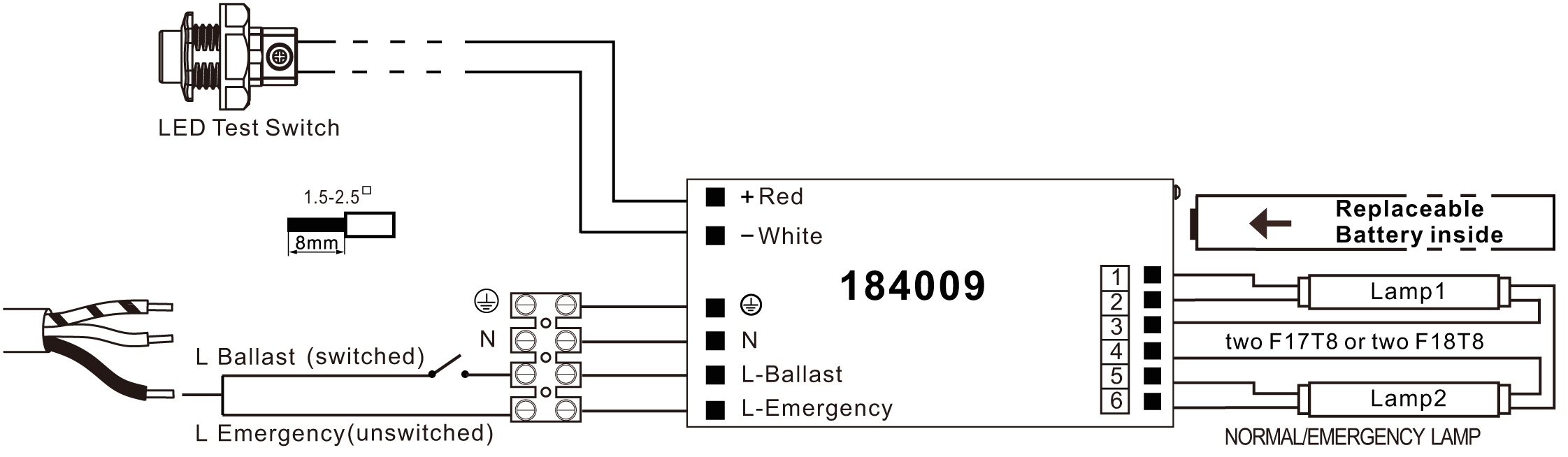

    FOR TWO LAMPS

    184009 Ó¦¼±µÆ½ÓÏßͼ ²»×¢Ã÷½ÓÏßÑÕÉ«-20140819.cdr
