Mini Emergency Inverter
184600 Mini Emergency Inverter 36W, 184603 Mini Emergency Inverter 27W, Pure sinusoidal AC output. For emergency operation of LED, fluorescent or incandescent lamps and fixtures and the max. emergency power is 36W@184600 and 27W@184603.
Max. 0-10V dimmable load can be up to 360W@184600 and 270W@184603
Output voltage auto setting according to input voltage.
Phenix Mini Emergency Inverter series provides 27W through 600W emergency powers for multiple fixtures with pure sinusoidal power during loss of normal AC power.
PRODUCT INFORMATION
-
![]()

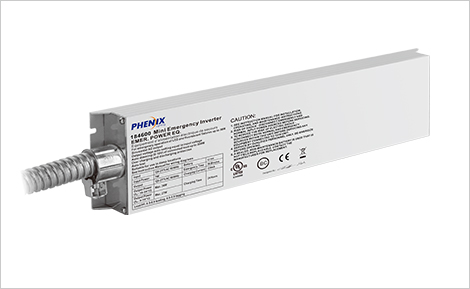

184600(-XX)l Pure sinusoidal AC output
l Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode
l Output voltage auto setting according to different input voltages
l Auto Test
l Extremely slim aluminium housing and light in weight
l Suitable for indoor, dry and damp applications
Read more >>
-
![]()

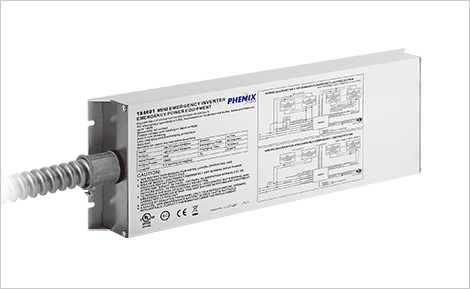

184601(-XX)l Pure sinusoidal AC output
l Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode
l Output voltage auto setting according to different input voltages
l Auto Test
l Extremely slim aluminium housing and light in weight
l Suitable for indoor, dry and damp applications
Read more >>
-
![]()

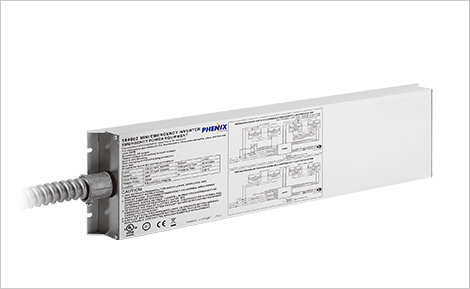

184602(-XX)l Pure sinusoidal AC output
l Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode
l Output voltage auto setting according to different input voltages
l Auto Test
l Extremely slim aluminium housing and light in weight
l Suitable for indoor, dry and damp applications
Read more >>
-
![]()

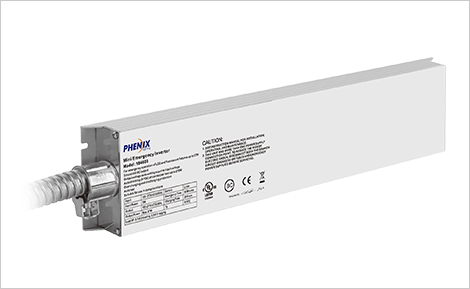

184603(-XX)l Pure sinusoidal AC output
l For emergency operation of LED and fluorescent fixtures up to 27W
l Auto dimming (0-10V) of connected load up to 270W
l Auto Test
l Extremely slim aluminium housing and light in weight
l Suitable for indoor, dry and damp applications
Read more >>
