Mini emergency inverter 184601/184602

5 views

Short Description:

184601 Mini Emergency Inverter 100W, 184602 Mini Emergency Inverter 200W. Pure sinusoidal AC output. Patented APD technology – Auto Preset Dimming (0-10V) the connected load in emergency mode. Max. 0-10V dimmable load can be up to 900W. Output voltage auto setting according to input voltage.

  • 01
  • 03
  • 04

Features

Characteristics

Model Dimensions

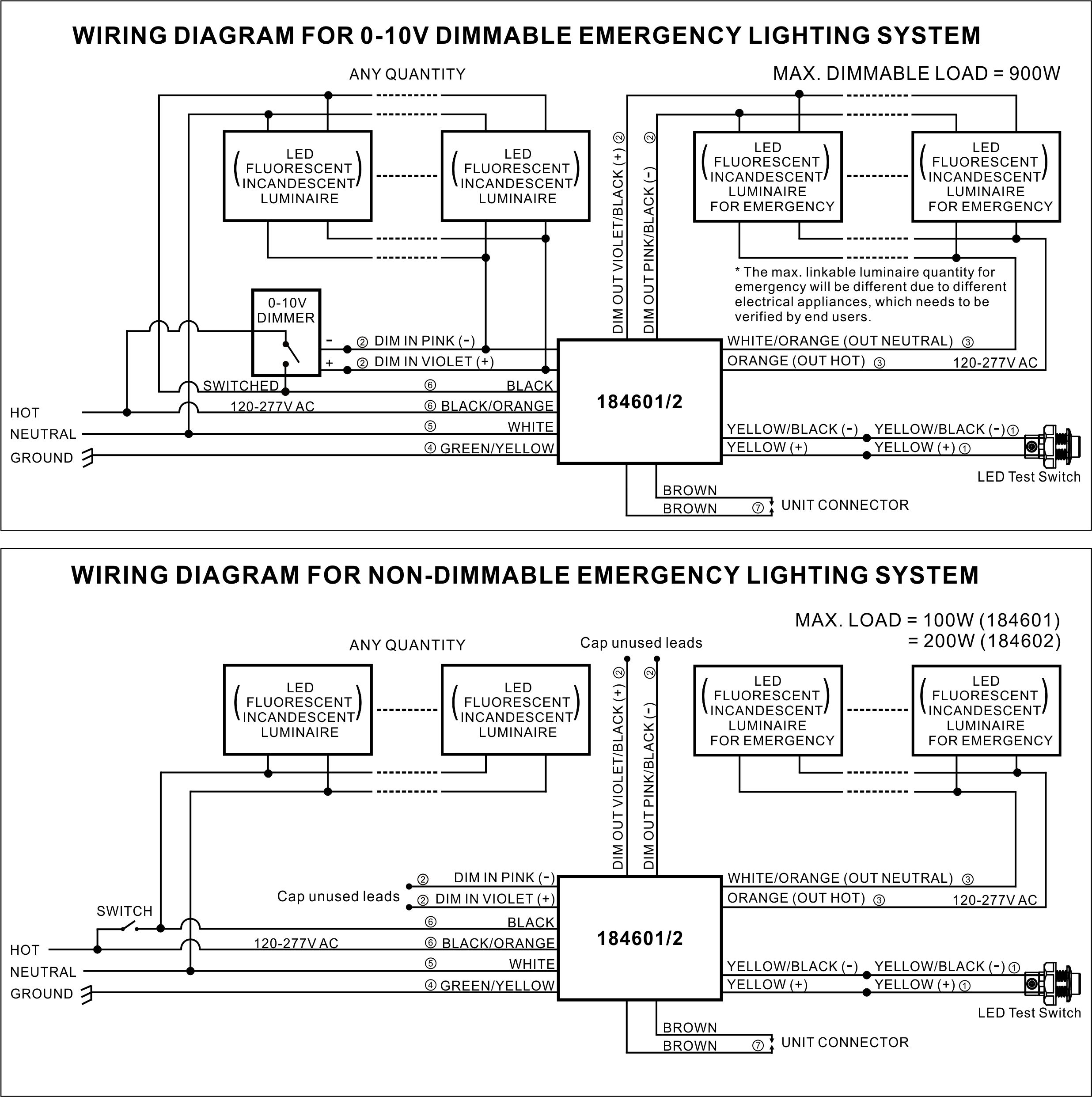

Wiring Diagram

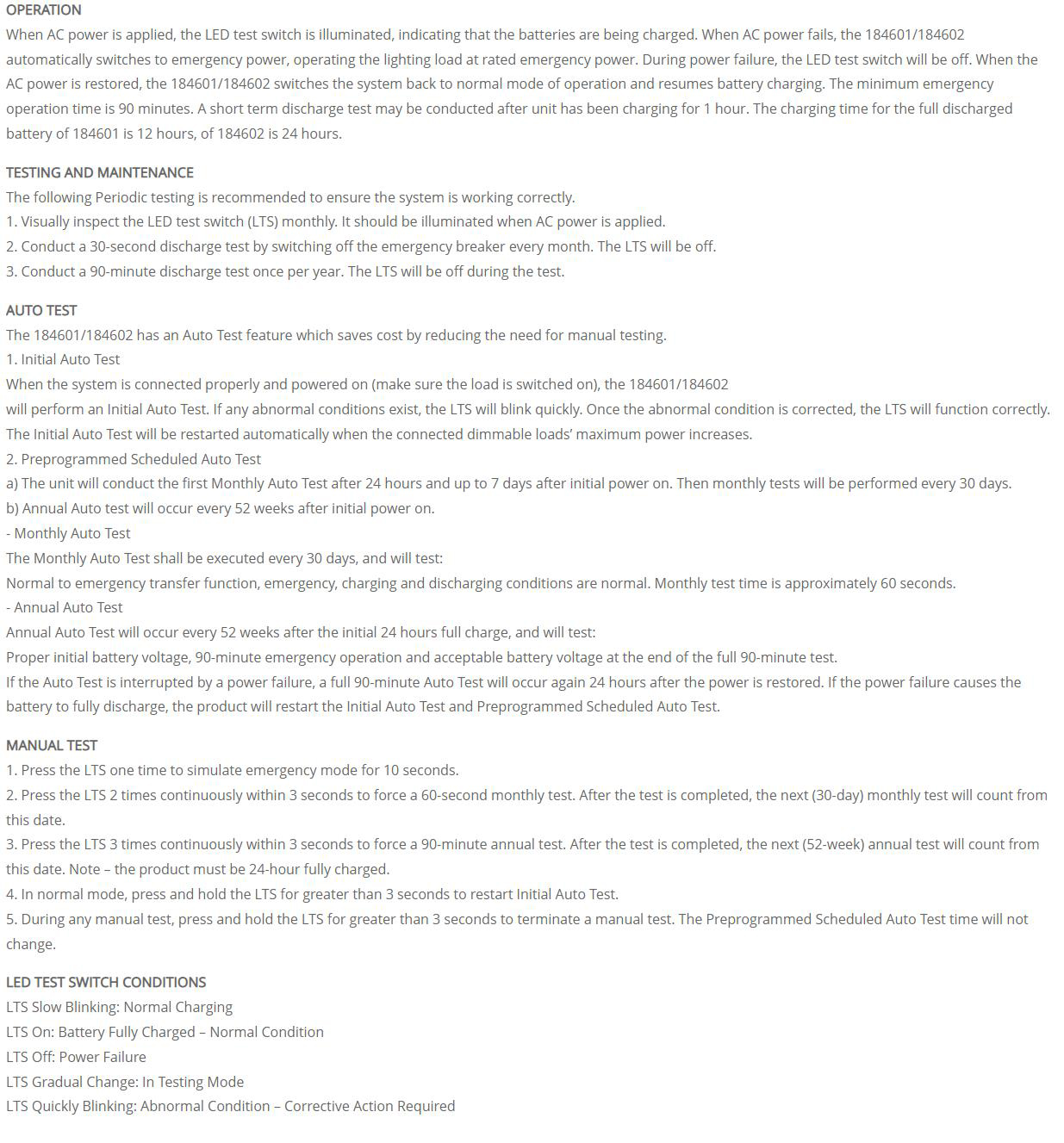

Operation/Testing/Maintenance

Product Tags

QAZ1

1. Pure sinusoidal AC output.

2. Patented APD technology - Auto Preset Dimming (0-10V) the connected load in emergency mode.

3. Output voltage auto setting according to different input voltages.

4. Auto Test.

5. Extremely slim aluminium housing and light in weight.

6. Suitable for indoor, dry and damp applications.


  • Previous:
  • Next:

  • Type 184601 184602
    Lamp type LED, fluorescent or incandescent bulbs, tubes and lighting fixtures
    Rated voltage 120-277VAC 50/60Hz
    Rated current 0.48A@120V
    Rated power 35W
    Power factor 0.5 leading to lagging 0.9 leading to lagging
    Output voltage 120-277VAC 50/60Hz
    Output power 100W 200W
    Max. power of 0-10V dimming load 900W
    Battery Li-ion
    Charging time 12 Hours 24 Hours
    Discharge time 90 Minutes
    Charging current 0.6A
    Lifetime 5 Years
    Charging cycles >1000
    Operation temperature 0-50 (32°F -122°F)
    Efficiency 84% 85%
    Abnormal protection Over voltage, over current, Inrush current limiting, over temperature, short circuit, open circuit
    Wire 16-18AWG/0.75-1.5mm2
    EMC/FCC/IC standard EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC part 15, ICES-005
    Safety standard EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141
    Meas. mm [inch] L346 [13.63] x W115 [4.53] x H41.5 [1.63] Mounting center: 338 [13.31] L479 [18.86] x W115 [4.53] x H41.5 [1.63] Mounting center: 471 [18.55]

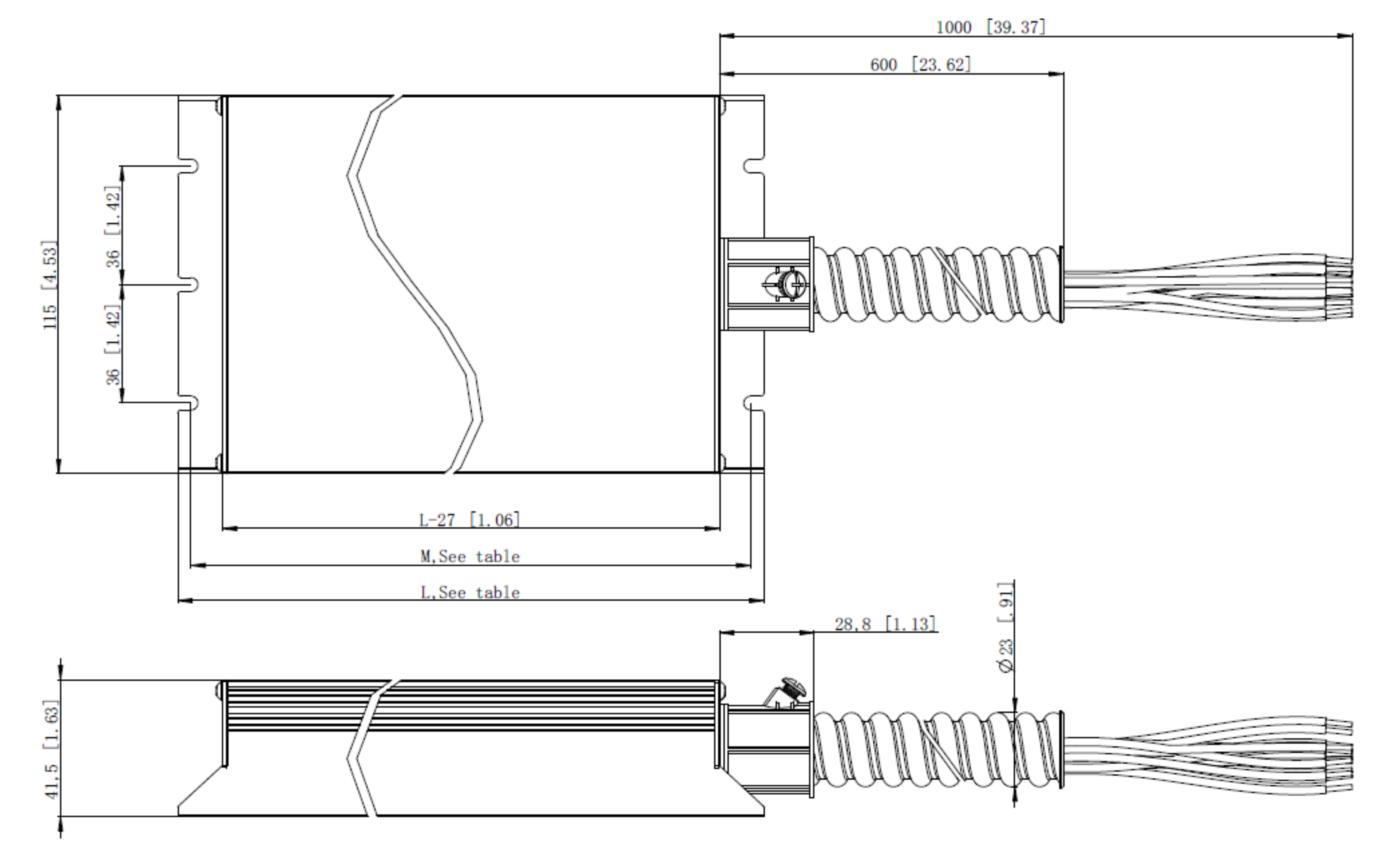

    184601/2

    xzvqw

    Item No.

    mm [inch]

    M mm [inch]

    W mm [inch]

    H mm [inch]

    184601

    346 [13.63]

    338 [13.31]

    115 [4.53]

    41.5 [1.63]

    184602

    479 [18.86]

    471 [18.55]

    115 [4.53]

    41.5 [1.63]

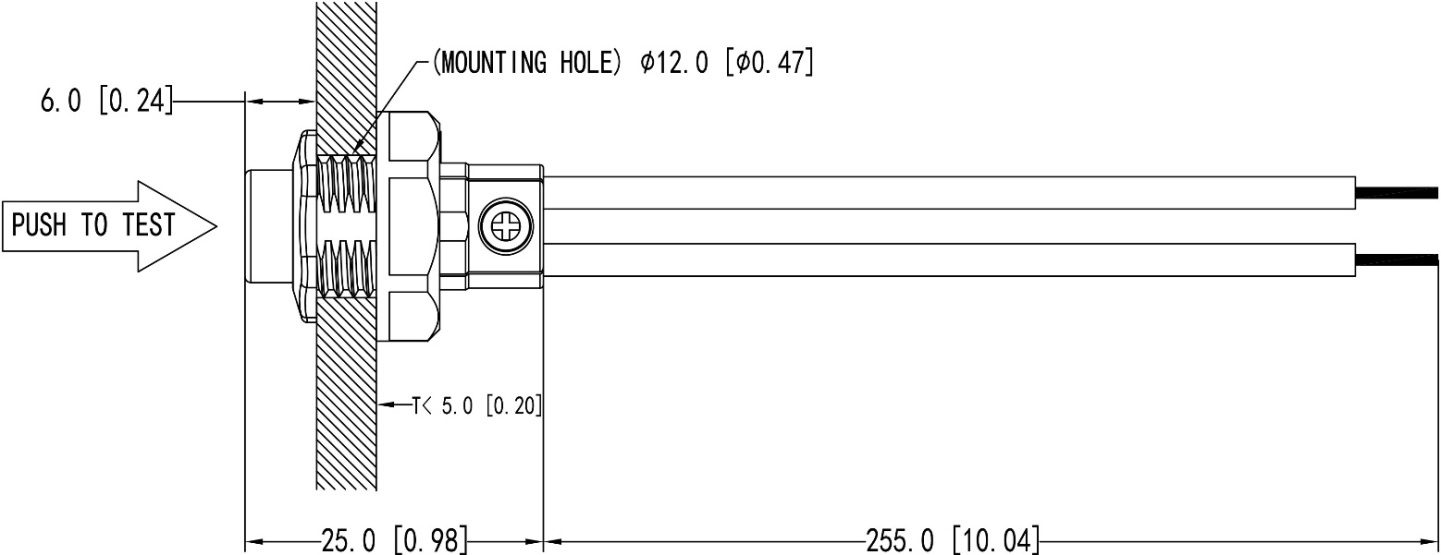

    LED TEST SWITCH

    zxqw

    Dimension unit: mm [inch] / Tolerance: ±1[0.04]
