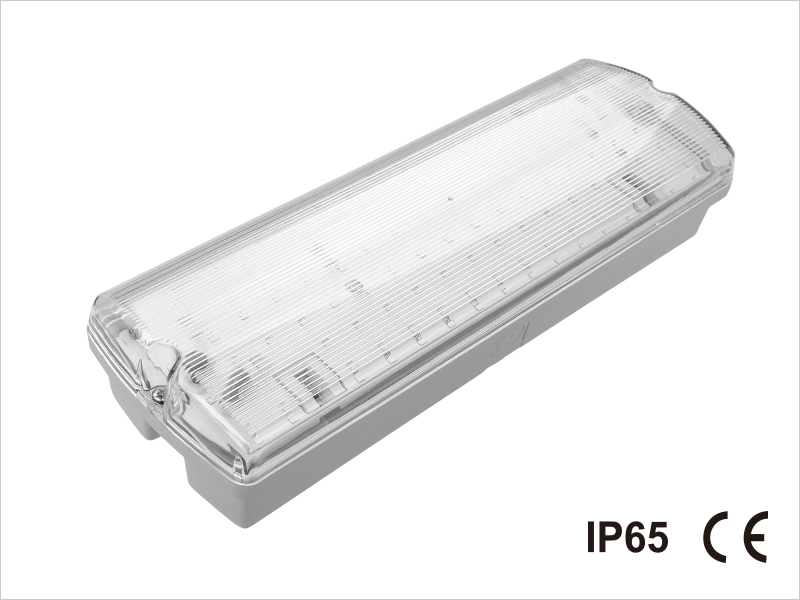

IP65 Waterproof Light
l
Small size, high lumen output, ideal for compact space
l
Housing made of UV and impact resistant polycarbonate (PC)
l
High light transmittance PC diffuser with UV and impact resistant
l
Both standard and emergency versions are available
l
Automatic heating system for emergency operations in wide temperatures from -30°C (-22°F) to +55°C (131°F)
l
Ideal for lift's illumination in onshore windmills
LL25A205
10W, 120/230 VAC
LL25A205-E
10W, 120/230 VAC
LL25A205-E-H
10W (2W Charging) (20W Heating), 120/230 VAC
|
Product name |
LIFT ST |
LIFT EM |
LIFT EH |
|
Item No. |
LL25A205 |
LL25A205-E |
LL25A205-E-H |
|
Description |
Light, LED,
Standard，SW/CW |
Light, LED, Emergency backup, SW |
Light, LED,
Emergency backup, Heating system, SW /CW |
|
Input voltage |
120/230 VAC 50/60Hz |
||
|
Input power |
10W |
10W |
10W |
|
12W (Charging) |
12W (Charging) |
||
|
32W (Charging + Heating) |
|||
|
Nominal current |
0.08/0.05A |
0.08/0.05A |
0.08/0.05A |
|
0.10/0.06A |
0.10/0.06A |
||
|
0.27/0.14A |
|||
|
Operation temp. |
-30°C ~55°C |
0~55°C |
-30~55°C |
|
Survival temp. |
-40~60°C |
-15~60°C |
-40~60°C |
|
Emergency module |
N/A |
Integrated LED
AC + Emergency Driver 184500, Pri.: 150mA Battery Dip: 4, 5 Down |
Integrated LED
AC + Emergency Driver 184500, Pri.: 150mA Battery Dip: 4, 5 Down |
|
Battery pack |
N/A |
9.6V/1.5Ah Ni-Cd
(High temp.) |
9.6V/1.5Ah Ni-Cd
(High temp.) |
|
Heating system |
N/A |
N/A |
Separate |
|
Lamp type |
LED SMD,
4000-6000K |
||
|
Normal lumen output |
1000LM |
1000LM |
1000LM |
|
Emergency lumen output |
N/A |
500LM |
500LM |
|
Emergency time |
N/A |
90 Minutes |
90 Minutes |
|
Expected battery
life |
N/A |
7-10 Years |
7-10 Years |
|
Battery full
charge |
N/A |
24 Hours |
24 Hours |
|
Meas. mm [inch] |
L352 [13.86] x
W117 [4.61] x H74 [2.91] Mounting center: 240 [9.45] |
||
|
Product name |
LIFT PRO ST |
LIFT PRO EM |
LIFT PRO EH |
|
Item No. |
LL03H115 |
LL03I115 |
LL03J115 |
|
Description |
Light, LED, standard,
SW/CW |
Light, LED, Emergency backup, SW |
Light, LED,
Emergency backup, Heating system, SW/CW |
|
Input voltage |
230 VAC 50/60Hz |
||
|
Input power |
15W |
15W |
15W |
|
17W (Charging) |
17W (Charging) |
||
|
37W (Charging + Heating) |
|||
|
Input current |
|||
|
Operation temp. |
-30~55°C |
0~55°C |
-30~55°C |
|
Survival temp. |
-40~60°C |
-15~60°C |
-40~60°C |
|
Emergency module |
N/A |
Integrated LED
AC + Emergency Driver 184500, 250mA Battery Dip: 4, 5 Down |
Integrated LED
AC + Emergency Driver 184500, 250mA Battery Dip: 4, 5 Down |
|
Battery pack |
N/A |
9.6V/1.5Ah Ni-Cd
（Low temp.) |
9.6V/1.5Ah Ni-Cd
（Low temp.) |
|
Heating system |
N/A |
N/A |
Separate |
|
Lamp type |
LED SMD,
4000-6000K |
||
|
Normal lumen output |
1500LM |
1500LM |
1500LM |
|
Emergency lumen output |
N/A |
500LM |
500LM |
|
Emergency time |
N/A |
90 Minutes |
90 Minutes |
|
Battery life
time |
N/A |
7-10 years |
7-10 years |
|
Battery full
charge |
N/A |
24 Hours |
24 Hours |
|
Meas. mm [inch] |
L390 [15.35] x
W110 [4.33] x H94 [3.70] Mounting center: 240 [9.45] |
||
