EN61347 Emergency LED Drivers
Phenix EN61347 LED Emergency Drivers family are CE or CB certified and provide full range of code-compliant emergency lighting solutions for various LED luminaires used in EU or other IEC system countries.
Phenix EN61347 LED Emergency Drivers family are CE or CB certified and provide full range of code-compliant emergency lighting solutions for various LED luminaires used in EU or other IEC system countries.
PRODUCT INFORMATION
-
![]()
18490X-1-HBl Quick wiring and installation without opening the luminaire or the emergency driver
l Perfectly compatible with non dimmable LED UFO, High Bay luminaires
l Constant emergency power output, wide range of output voltage from 10 to 300VDC, output current auto adjustable
l Emergency output is convertible between 90 and 180 minutes
l Extremely slim aluminum housing and light in weight, built-in battery
Read more >>
-
![]()

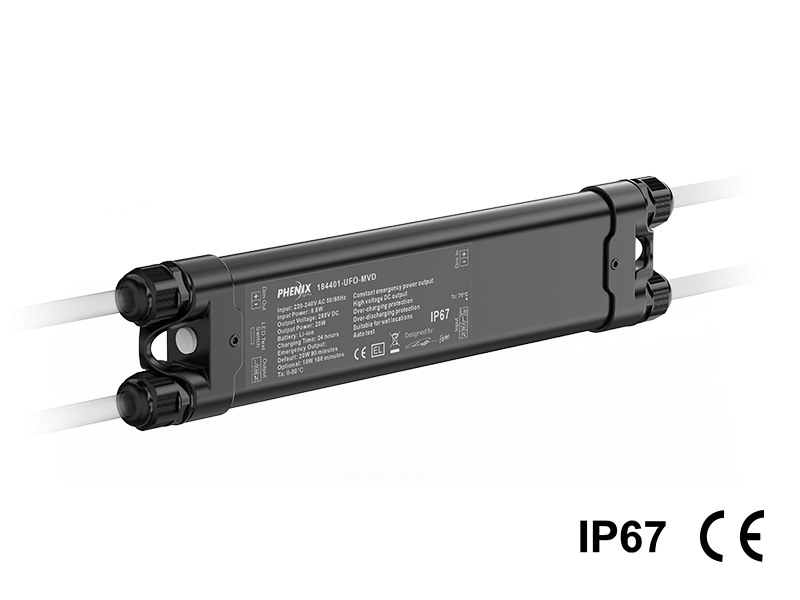

184401-UFO-MVDl Quick wiring and installation
l Auto dimming (0/1-10V) of connected load up to 10 times of emergency power
l High voltage DC output
l Constant emergency power output
l Emergency output is convertible between 90 and 180 minutes
l Auto Test
l Extremely slim aluminium housing and light in weight, built-in battery
l IP67 rating, suitable for outdoor and wet applications
Read more >>
-
![]()
184502/3-ENl 22-45VDC output
l Emergency operation in -40°C to +50°C
l Slim aluminum housing, built-in heating and insulation battery pack
l Auto Test
Read more >>
-
![]()
184501-A1-ENl For normal and emergency operation of LEDs, no need an extra AC LED driver
l Constant current, multi-current selectable output
l Normal mode LED soft start, emergency mode conversion within 0.3 seconds
l 1-10V dimmable
l Emergency output (power and time) selectable
l Auto Test
l Slim aluminum housing
l Suitable for indoor, dry and damp applications
Read more >>
-
![]()
184500-A2-ENl For normal and emergency operation of LEDs, no need an extra AC LED driver
l Constant current, multi-current selectable output
l Normal mode LED soft start, emergency mode conversion within 0.3 seconds
l 1-10V dimmable
l Emergency output (power and time) selectable
l Auto Test
l Slim aluminum housing
l Suitable for indoor, dry and damp applications
Read more >>
-
![]()
184901-1-HBl Emergency operation of LED light source and luminaires, for both factory and field installation
l Perfectly compatible with non dimmable LED UFO, High Bay luminaires
l Constant emergency power output, wide range of output voltage from 10 to 300VDC, output current auto adjustable
l Auto test function reduces the maintenance cost
l IP67 rating. Suitable for outdoor and wet applications
Read more >>
-
![]()
18490X-1-ENl For emergency operation of and perfectly compatible with Most of European standard DC LED loads, AC LED tubes or bulbs
l Emergency output is convertible between 180 and 90 minutes
l Constant emergency power output
l Wide range of output voltage from 5 to 200VDC, output current auto adjustable
l Auto test function reduces the maintenance cost to minimum
l Extremely slim aluminum housing, built-in Battery
l Suitable for indoor, dry and damp applications
Read more >>
