Fluorescent emergency ballast 184000
8 views
Short Description:
184000 Emergency Ballast 500LM with built-in batter pack, for use with most 2‘- 4’ single bipin T8 to T12, 17W, 18W, 32W, 36W, T5 28W, compact 42W, circular 40W fluorescent lamps.
For emergency operation of fluorescent lamps.
Normal and emergency mode conversion within 0.3 seconds.
Built-in high temperature Nicd battery pack.
| Type | 184000 |
| Lamp type | Most 2‘- 4’ single bipin T8 to T12, 17W,18W,32W,36WT5 28W, compact 42W, circular 40W fluorescent lamps |
| Rated voltage | 120/277VAC |
| Rated current | 0.04A |
| Rated power | 3.5W |
| Operation frequency | 320kHz≥f≥50kHz |
| Power factor | 0.5 |
| Battery | Ni-Cd |
| Charging time | 24 Hours |
| Discharge time | >90 Minutes |
| Charging cycles | ≥500 |
| Charging current | 0.11A ( Max.) |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Initial lumen output | 500LM |
| Efficiency | 70% |
| Abnormal protection | Over load, over current, inrush current limiting, short circuit, open circuit |
| Wire | 18AWG/0.75 mm2 |
| EMC& FCC IC standardSafety standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3; FCC part 18; ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141 |

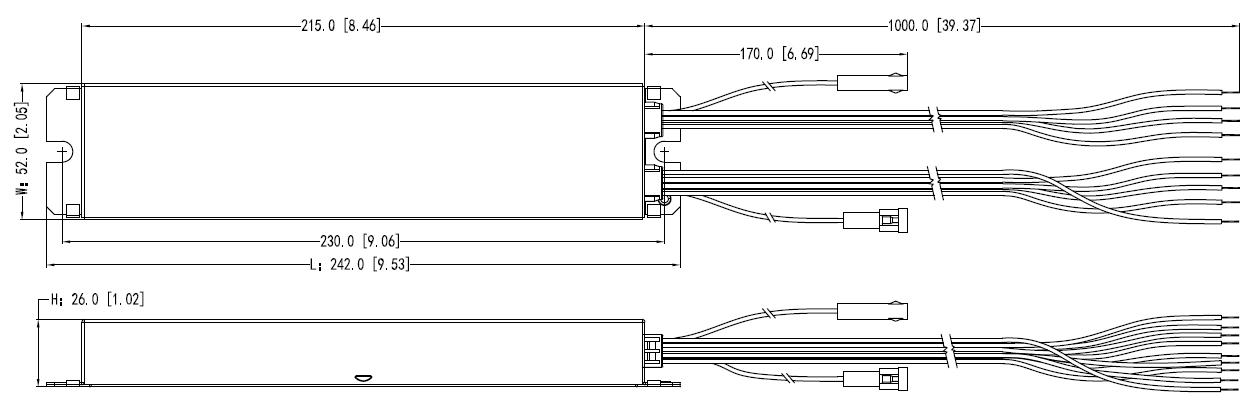

| Meas. mm [inch] | L242 [9.53] x W52 [2.05] x H26 [1.02] Mounting Center: 230 [9.06] |
| Item No. | L mm [inch] | M mm [inch] | W mm [inch] | H mm [inch] |
| 184000 | 242 [9.53] | 230 [9.06] | 52 [2.05] | 26 [1.02] |
Notes:
1. Dimension unit: mm [inch]
2. Dimension tolerance: ±1 [0.04]
