COLD-PACK LED emergency driver 18430X-X

19 views

Short Description:

9W 18W 27W Low Temperature Led Emergency Driver. Emergency operation of LED light source and luminaires in extreme temperaturature from -40°C to 50°C over 90 minutes.

  • 01
  • 03
  • 04

Features

Characteristics

Models Selection

Model Dimensions

Wiring Diagrams

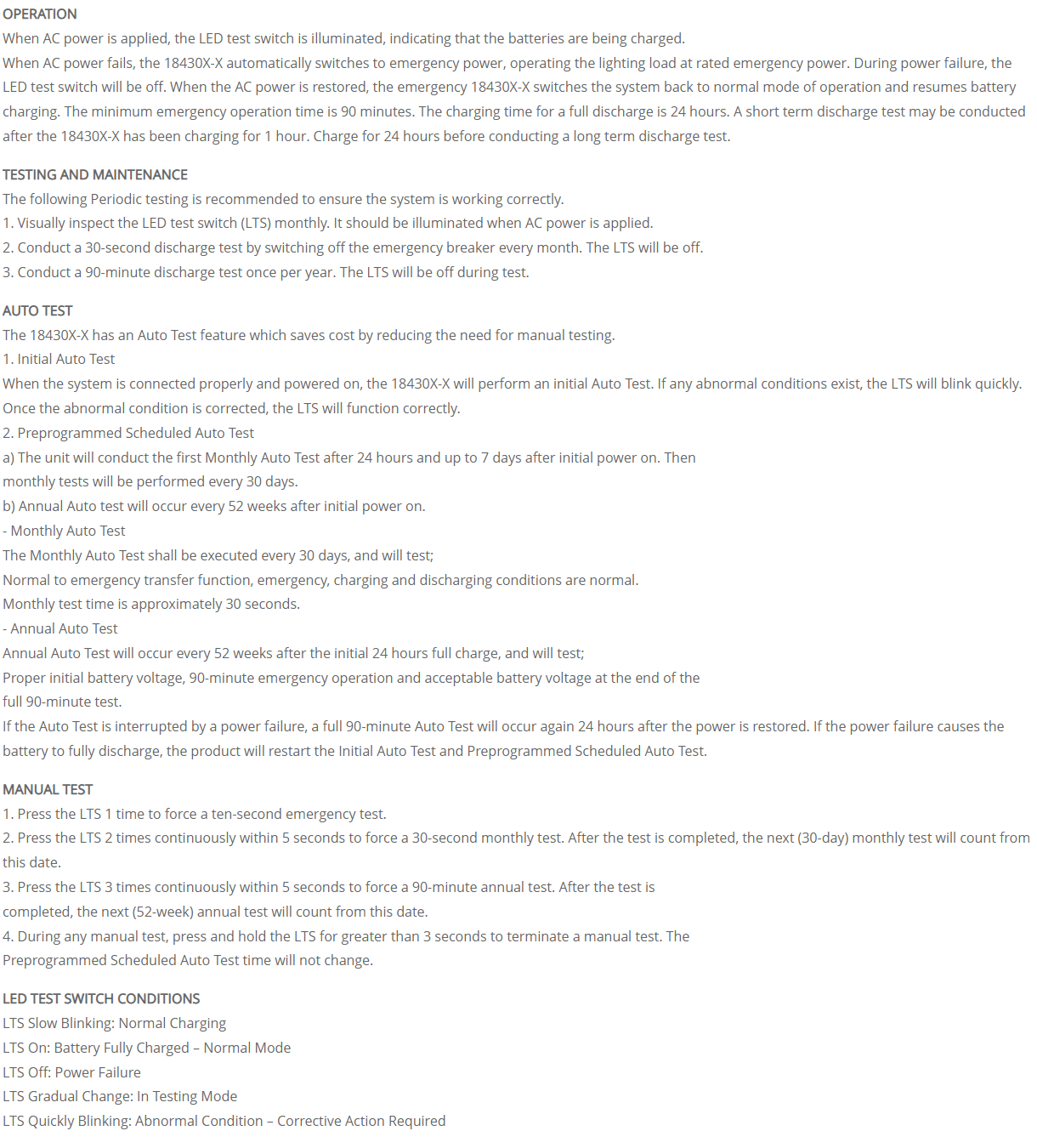

Operation/Testing/Maintenance

Safety Instructions

Product Tags

01

18430X-1

04

18430X-4

02

18430X-2

05

18430X-5

03

18430X-3

06

18430X-6

18430X-2-FV

18430X-2-FV

18430X-3-FV

18430X-3-FV

18430X-4-FV

18430X-4-FV

18430X-5-FV

18430X-5-FV

18430X-6-FV

18430X-6-FV

184301-1-FV

184301-1-FV

18430X-2-VV

18430X-2-VV

18430X-3-VV

18430X-3-VV

18430X-4-VV

18430X-4-VV

18430X-5-VV

18430X-5-VV

18430X-6-VV

18430X-6-VV

184301-1-VV

184301-1-VV

1. Emergency operation of LED light source and luminaires in extreme temperature from -40°C to +50°C (-40°F to +122°F)
2. Perfectly compatible with both DC LED loads and AC LED drivers
3. Constant emergency power output, wide range of output voltage from 20 to 400VDC, output current auto adjustable
4. Various emergency power options:

18430X Emergency power
184301 9W
184302 18W
184303 27W

5. Various structures options:

Type Structure
18430X-1 Square version with terminal block
18430X-2 Square version with metal conduits
18430X-3 Square version with metal conduits head
18430X-4 Linear version with metal conduits
18430X-5 Linear version with metal conduits head
18430X-6 Linear version with metal conduits, IP66

6. Auto dimming (0-10V) of connected load up to 90W for 184301, 180W for 184302 and 270W for 184303
7. Auto test
8. Slim aluminum housing, built-in Battery
9. 18430X-1/2/3/4/5: Suitable for indoor, dry and damp applications
10. 18430X-6: IP66 rating. Suitable for outdoor and wet applications


  • Previous:
  • Next:

  • Type 184301-X 184302-X 184303-X
    Rated voltage 120-277VAC 50/60Hz
    Rated current 0.06A 0.1A 0.12A
    Rated power 3.5W 5.5W 7.5W
    Power when heating 8W 10W 12W
    Emergency power 9W 18W 27W
    Output voltage 10-300V 20-300V 30-400V
    Output current 0.9A
    Output current of AC driver 5A
    Operation frequency 320kHz≥f≥50kHz
    Power factor 0.5
    Battery Li-ion
    Charging time 24 Hours
    Discharge time >90 Minutes
    Charging current 0.168A
    Life time 5 Years
    Charging cycles >1000
    Operation temperature -40-50°C (-40° F- 122° F)
    Efficiency 80%
    Abnormal protection Over load, inrush current limiting, over temperature, open circuit, short circuit protection with auto-reset
    Wire 0.75-1.5mm2
    EMC/FCC/IC standard EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, FCC Part 15, ICES-005
    Safety standard EN 61347-1, EN 61347-2-7, UL924, CSA C.22.2 No. 141
    Meas. mm [inch] 184301-4/5/6: L330 [12.99] x W50 [1.97] x H30 [1.18] Mounting center: 320 [12.60]
    184302-4/5/6: L395 [15.55] x W50 [1.97] x H30 [1.18] Mounting center: 385 [15.16]
    184303-4/5/6: L460 [18.11] x W50 [1.97] x H30 [1.18] Mounting center: 450 [17.72]
    184301-1: L165 [6.50] x W82 [3.23] x H30 [1.18] Mounting center: 157 [6.18]
    184302-1: L205 [8.07] x W82 [3.23] x H30 [1.18] Mounting center: 197 [7.76]
    184303-1: L245 [9.65] x W82 [3.23] x H30 [1.18] Mounting center: 237 [9.33]
    184301-2/3: L205 [8.07] x W82 [3.23] x H30 [1.18] Mounting center: 197 [7.76]
    184302-2/3: L245 [9.65] x W82 [3.23] x H30 [1.18] Mounting center: 237 [9.33]
    184303-2/3: L285 [11.22]x W 82 [3.23] x H30 [1.18] Mounting center: 277 [10.91]
    Phenix Type No. Measurement LxWxH mm [inch] Individual unit packaging in weight kg [lb] Operating temperature Input voltage Output voltage Auto test AC driver/ballast function AC driver/ballast output power Emergency power Lumens @120LM/W Approval
    01 04 02 03
    COLD-PACK LED emergency driver 18430X-X
    184301-1 L165 [6.50] x W82 [3.23] x H30 [1.18] 0.50 [1.10] –40-50℃ AC 120-277V DC 10-300V   Max.1500W @5A 9W 1080
    184301-2 L205 [8.07] x W82 [3.23] x H30 [1.18] 1.00 [2.20]
    184301-3 L205 [8.07] x W82 [3.23] x H30 [1.18] 0.78 [1.72]
    184301-4 L330 [12.99] x W50 [1.97] x H30 [1.18] 1.02 [2.25]
    184301-5 L330 [12.99] x W50 [1.97] x H30 [1.18] 0.80 [1.76]
    184301-6 L330 [12.99] x W50 [1.97] x H30 [1.18] 0.90 [1.98]
    184302-1 L205 [8.07] x W82 [3.23] x H30 [1.18] 0.63 [1.39] –40-50℃ AC 120-277V DC 20-300V   Max.1500W @5A 18W 2160
    184302-2 L245 [9.65] x W82 [3.23] x H30 [1.18] 1.15 [2.54]
    184302-3 L245 [9.65] x W82 [3.23] x H30 [1.18] 0.93 [2.05]
    184302-4 L395 [15.55] x W50 [1.97] x H30 [1.18] 1.17 [2.58]
    184302-5 L395 [15.55] x W50 [1.97] x H30 [1.18] 0.95 [2.09]
    184302-6 L395 [15.55] x W50 [1.97] x H30 [1.18] 1.25 [2.76]
    184303-1 L245 [9.65] x W82 [3.23] x H30 [1.18] 0.79 [1.74] –40-50℃ AC 120-277V DC 30-400V   Max.2000W @5A 27W 3240
    184303-2 L285 [11.22]x W 82 [3.23] x H30 [1.18] 1.30 [2.87]
    184303-3 L285 [11.22]x W 82 [3.23] x H30 [1.18] 1.08 [2.38]
    184303-4 L460 [18.11] x W50 [1.97] x H30 [1.18] 1.22 [2.69]
    184303-5 L460 [18.11] x W50 [1.97] x H30 [1.18] 1.00 [2.20]
    184303-6 L460 [18.11] x W50 [1.97] x H30 [1.18] 1.42 [3.13]
    18430X-1:Square version with termianl block; 18430X-2: Square version with metal conduits; Square version with metal conduit’s head; 18430X-4: Linear version with metal conduits; 18430X-5: Linear version with Squre version with metal conduit’s head; 18430X-6: Liner version with metal conduits, IP66

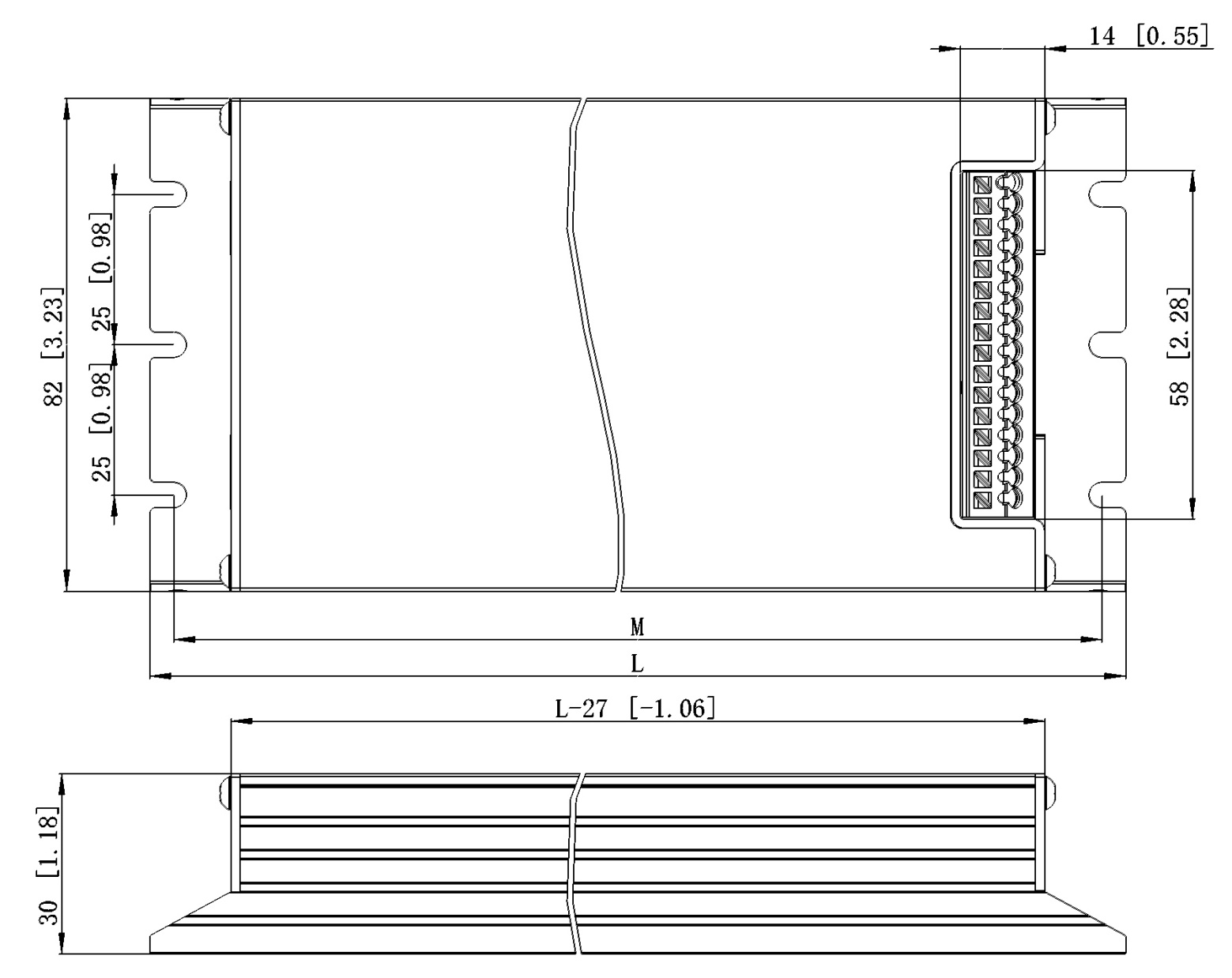

    18430X-1vabbwe

    Item No.

    L

    mm [inch]

    M

    mm [inch]

    W

    mm [inch]

    H

    mm [inch]

    184301-1

    165 [6.50]

    157 [6.18]

    82 [3.23]

    30 [1.18]

    184302-1

    205 [8.07]

    197 [7.76]

    82 [3.23]

    30 [1.18]

    184303-1

    245 [9.65]

    237 [9.33]

    82 [3.23]

    30 [1.18]

    Dimension unit: mm [inch]
    Tolerance: +/-1 [0.04]

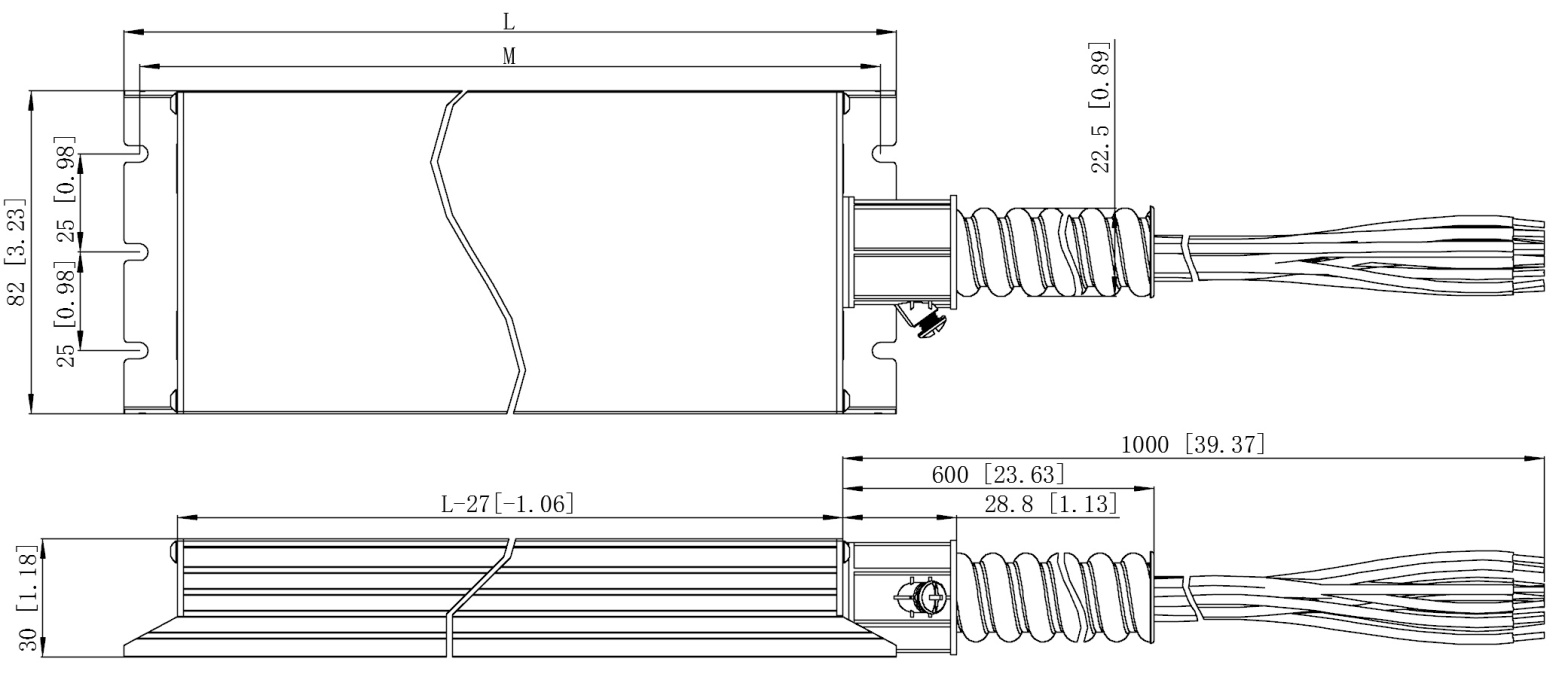

    18430X-2

    veqe

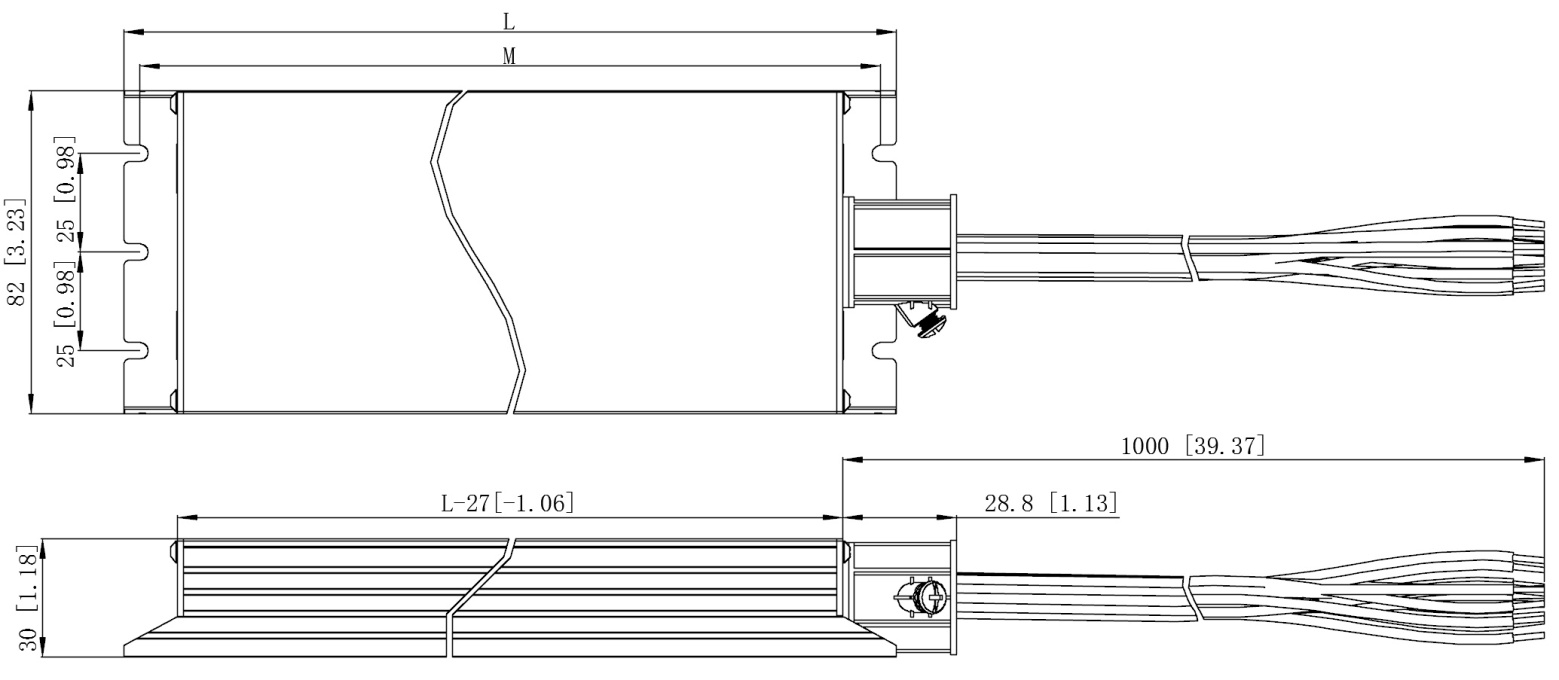

    18430X-3

    fbqwf

    Item No.

    L

    mm [inch]

    M

    mm [inch]

    W

    mm [inch]

    H

    mm [inch]

    184301-2/3

    205 [8.07]

    197 [7.76]

    82 [3.23]

    30 [1.18]

    184302-2/3

    245 [9.65]

    237 [9.33]

    82 [3.23]

    30 [1.18]

    184303-2/3

    285 [11.22]

    277 [10.91]

    82 [3.23]

    30 [1.18]

    Dimension unit: mm [inch] / Tolerance: +/-1 [0.04]

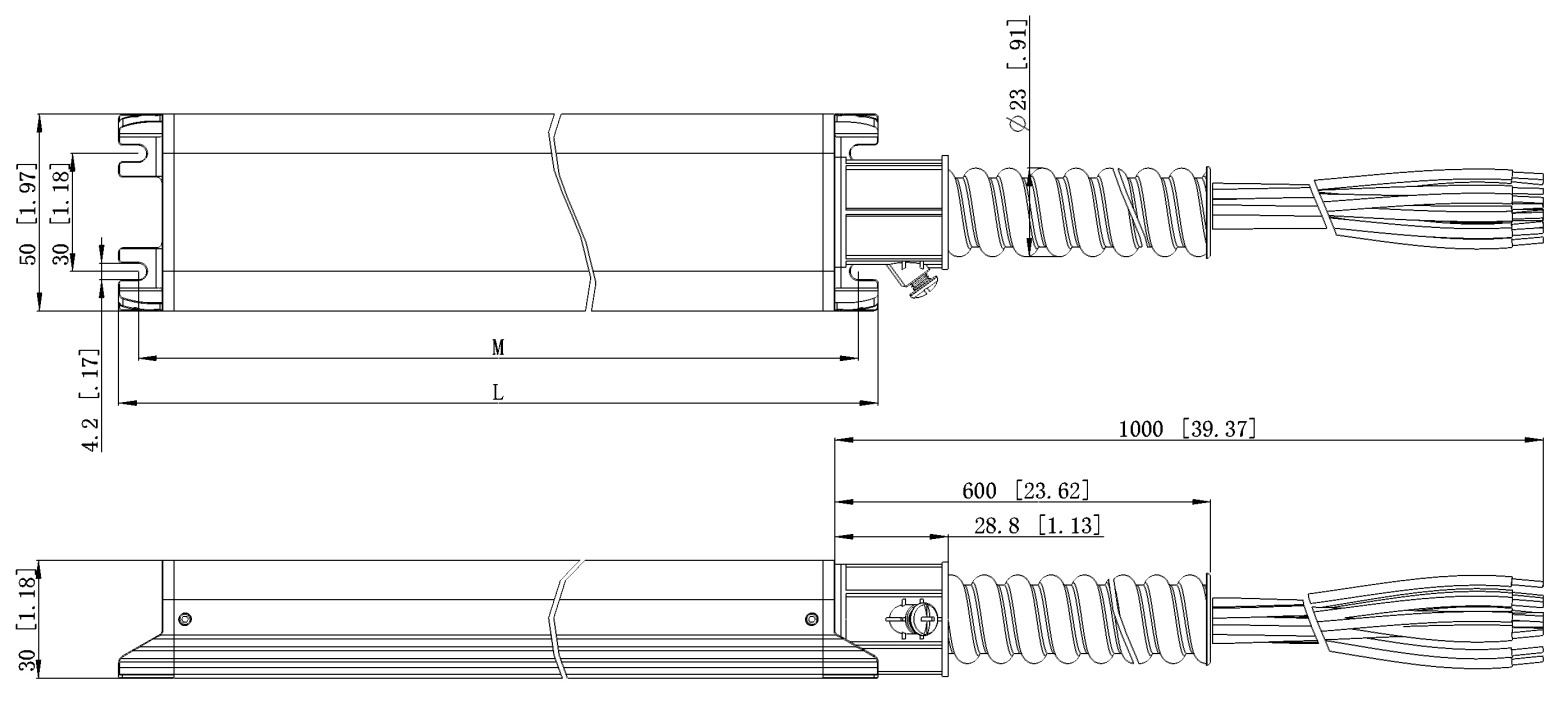

    18430X-4

    svqwgqg

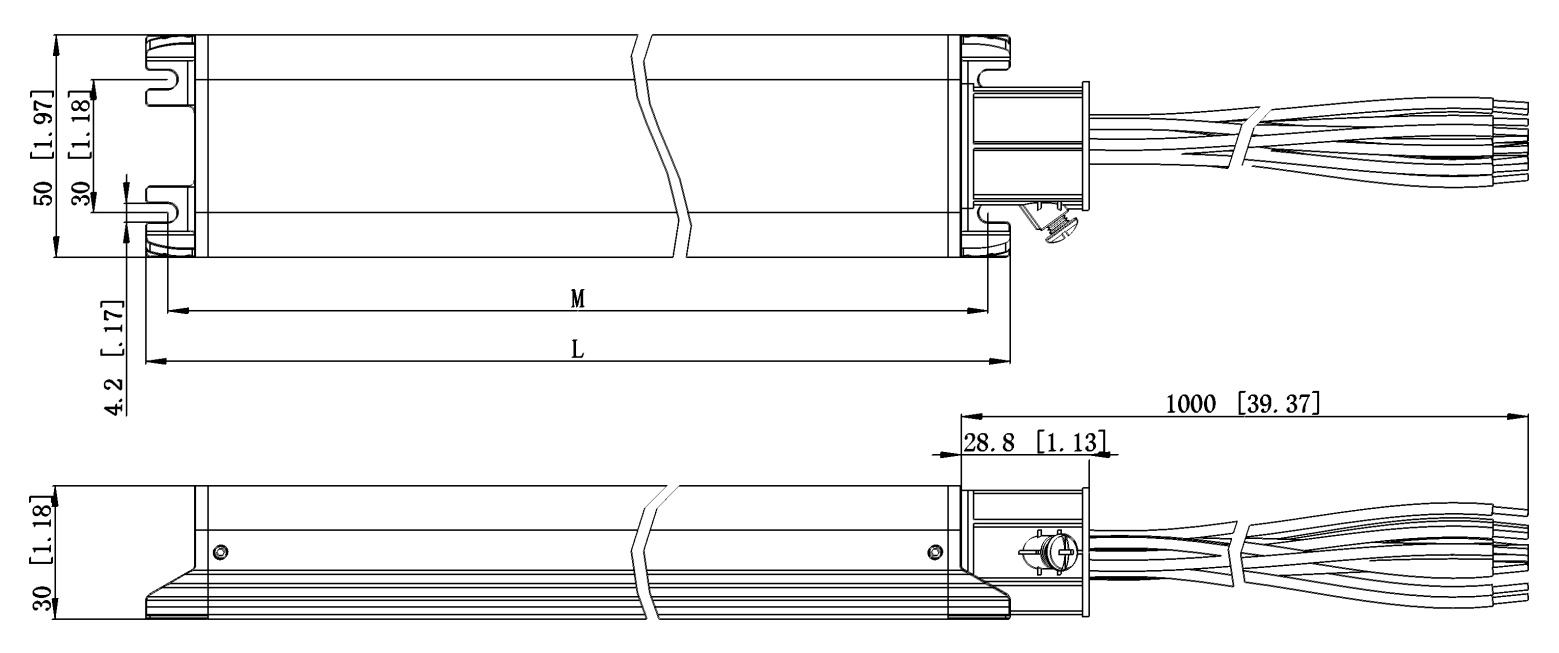

    18430X-5

    xbqwf

    Item No.

    L

    mm [inch]

    M

    mm [inch]

    W

    mm [inch]

    H

    mm [inch]

    184301-4/5

    330 [12.99]

    320 [12.60]

    50 [1.97]

    30 [1.18]

    184302-4/5

    395 [15.55]

    385 [15.16]

    50 [1.97]

    30 [1.18]

    184303-4/5

    460 [18.11]

    450 [17.72]

    50 [1.97]

    30 [1.18]

    Dimension unit: mm [inch]
    Tolerance: +/-1 [0.04]

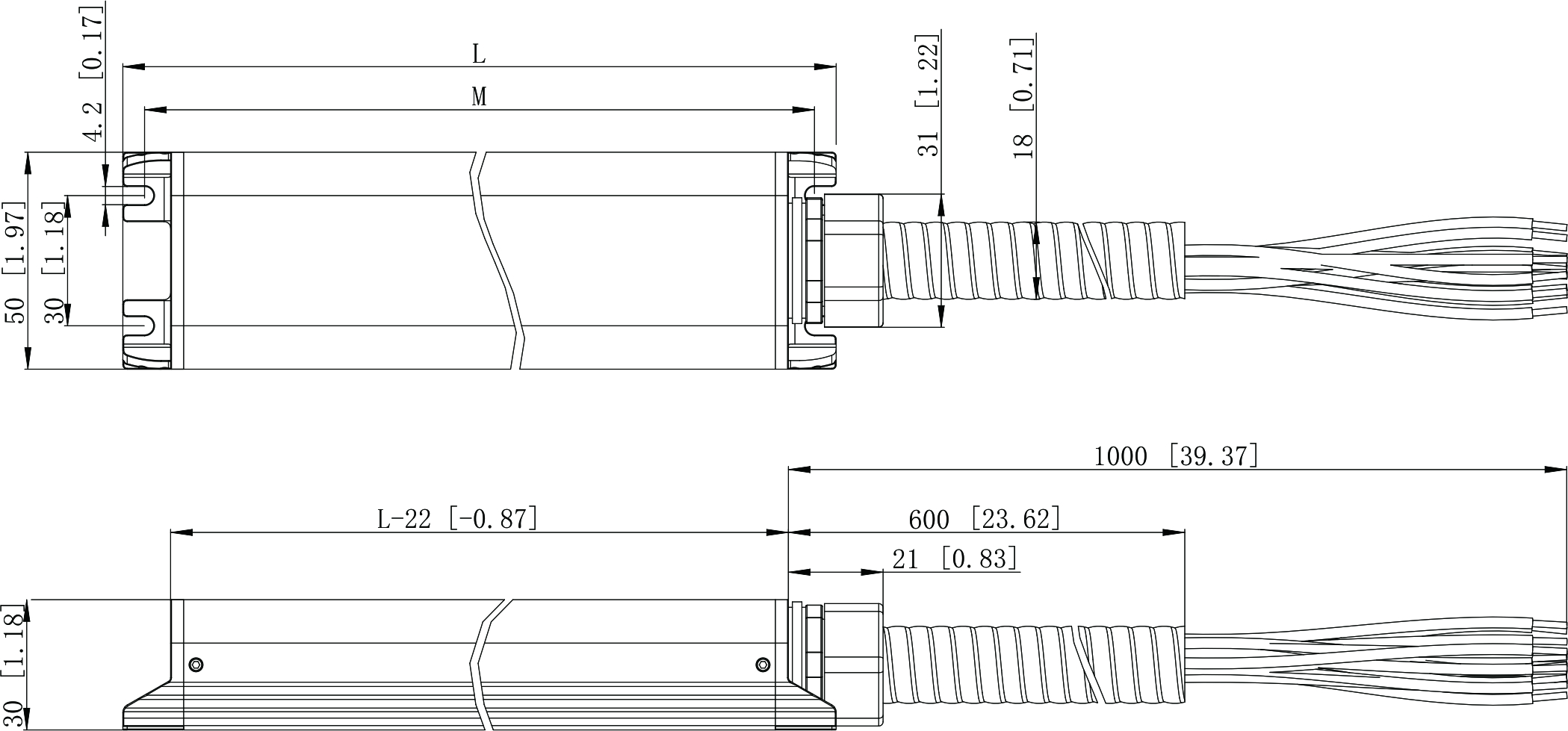

    18430X-6

    wewrq

    Item No.

    L

    mm [inch]

    M

    mm [inch]

    W

    mm [inch]

    H

    mm [inch]

    184301-6

    330 [12.99]

    320 [12.60]

    50 [1.97]

    30 [1.18]

    184302-6

    395 [15.55]

    385 [15.16]

    50 [1.97]

    30 [1.18]

    184303-6

    460 [18.11]

    450 [17.72]

    50 [1.97]

    30 [1.18]

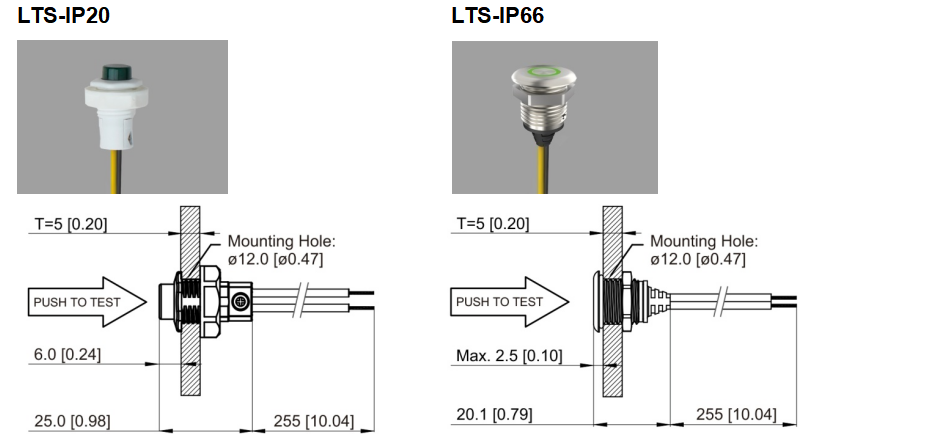

    LED TEST SWITCH

    wefaf

    Dimension unit: mm [inch]
    Tolerance: +/-1 [0.04]

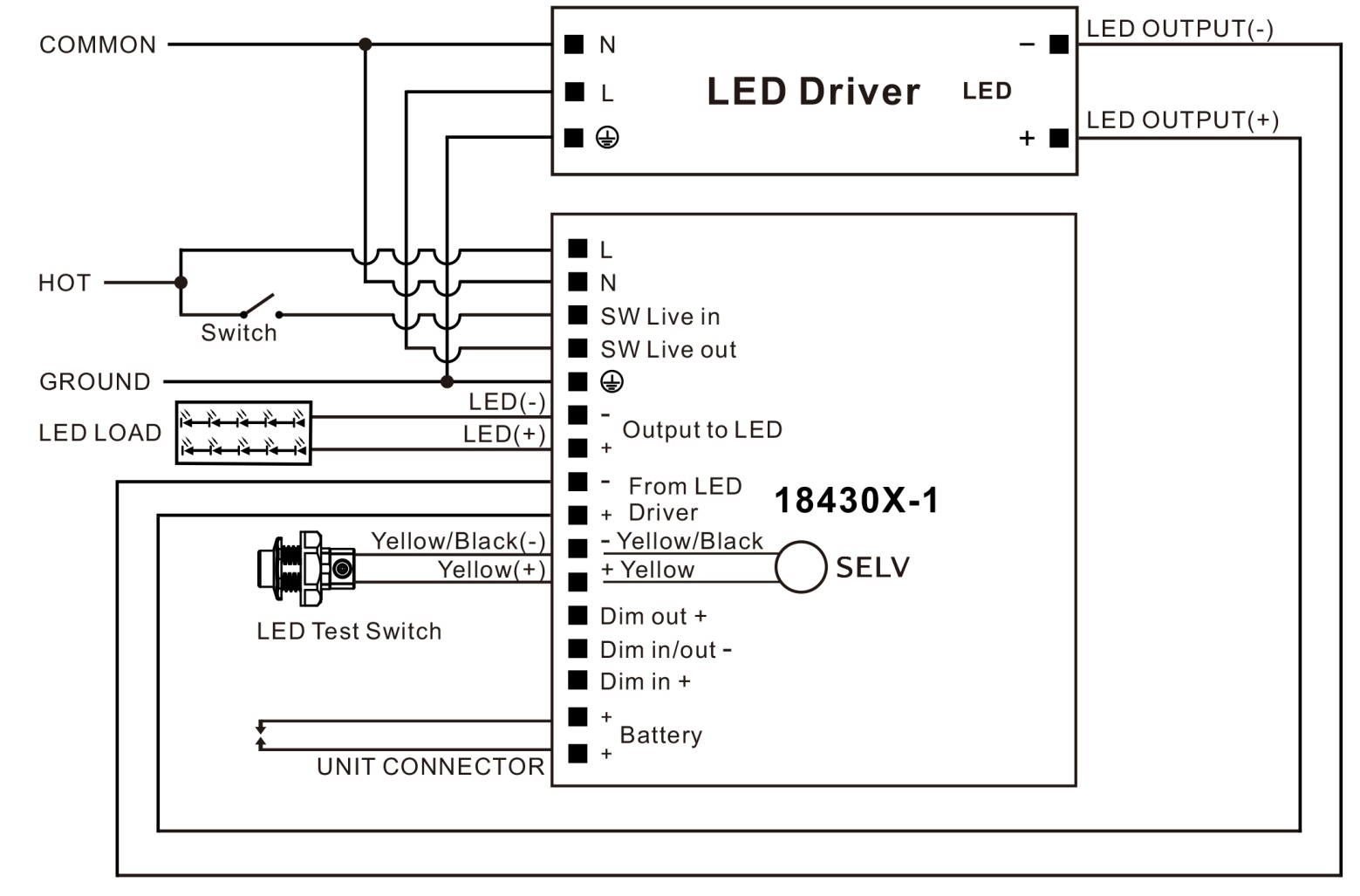

    FOR DC LED LOAD

    vrhwr

    bnbe

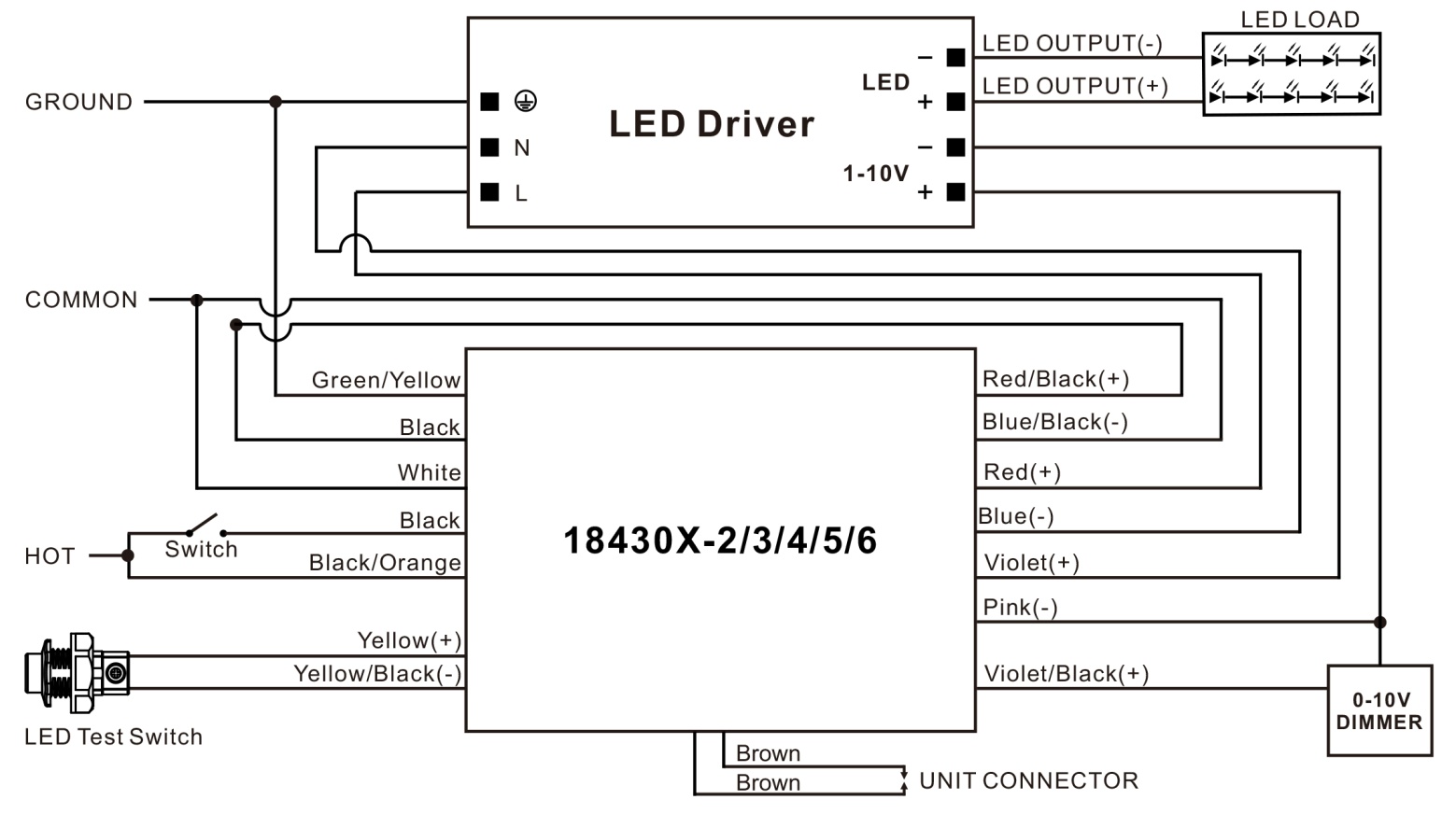

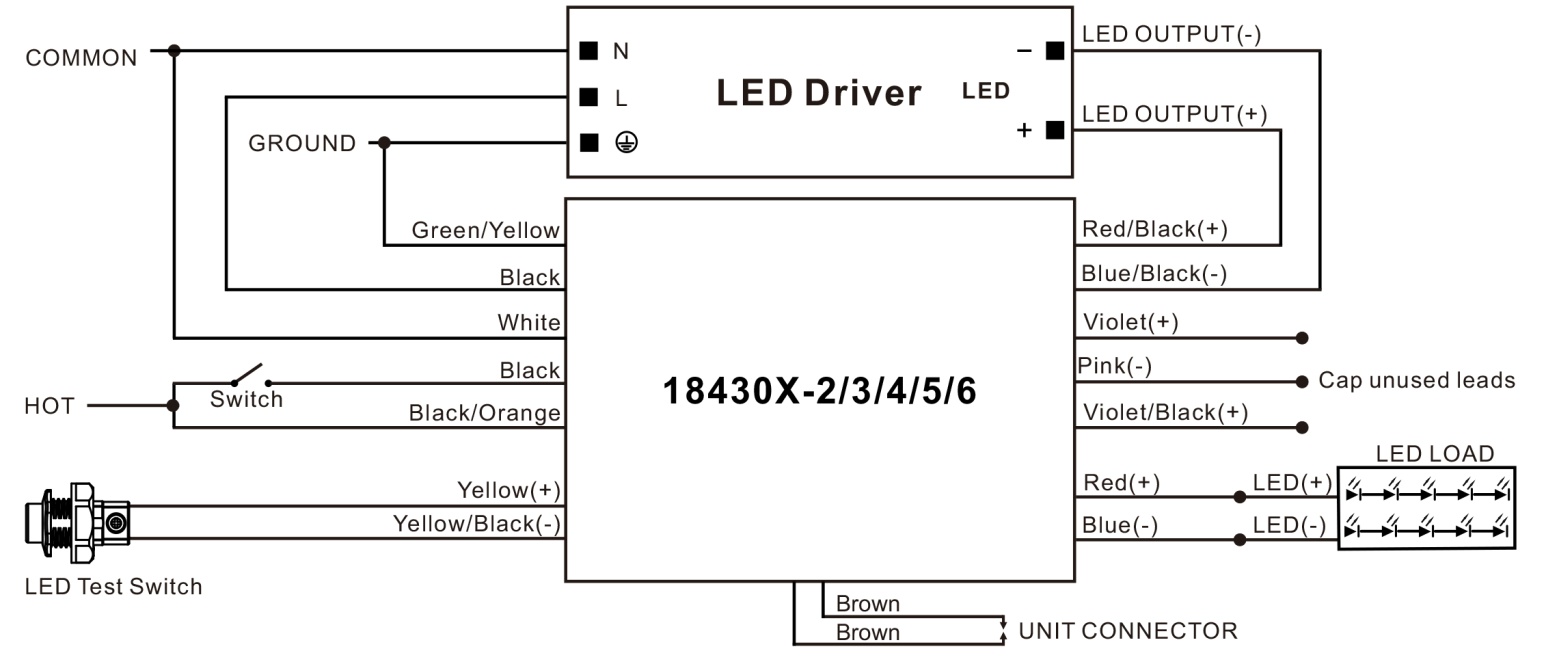

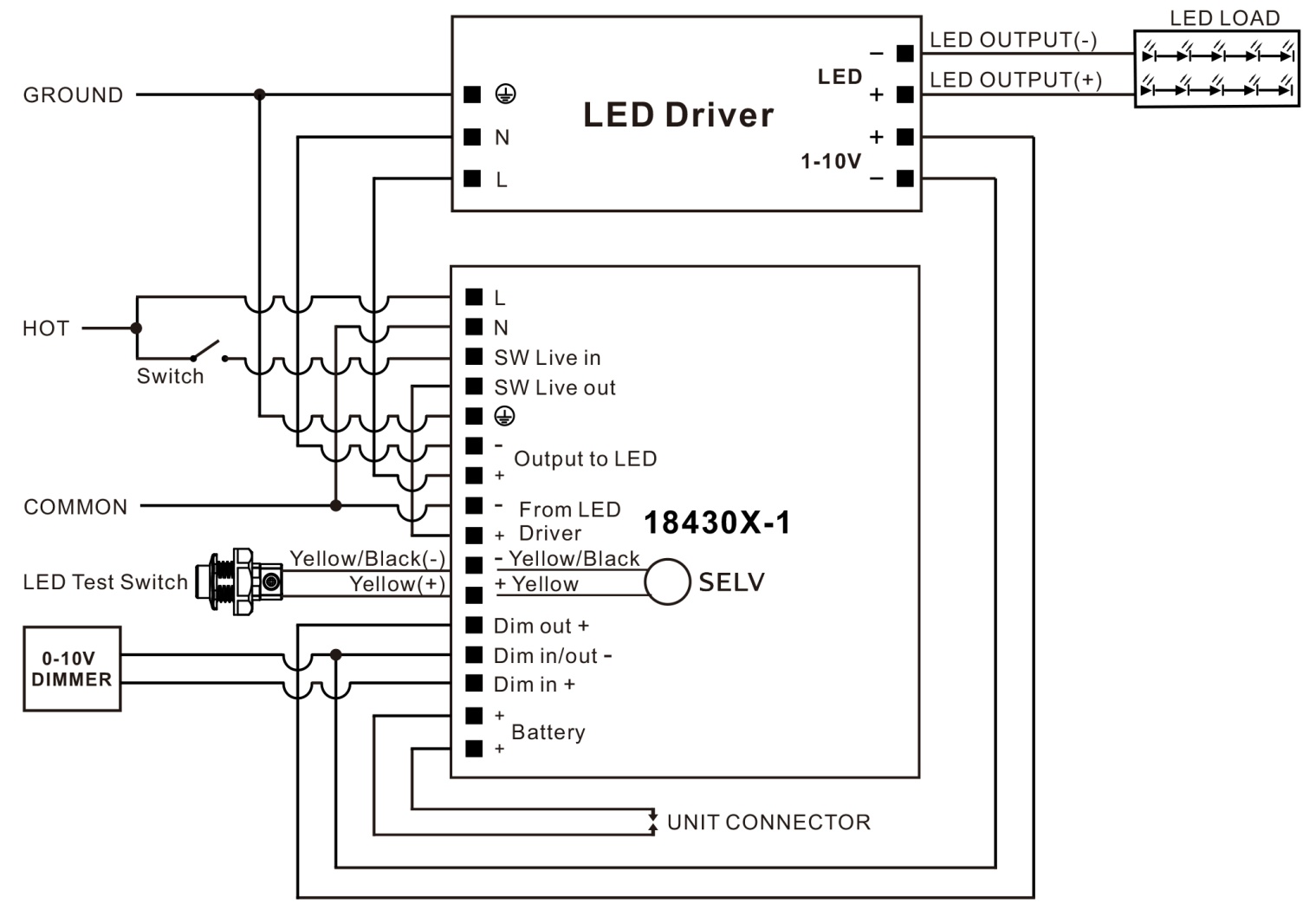

     FOR AC LED TUBE/BULB/LUMINAIRE

    fnbegvr

    cvbef

    af

    1. To prevent electric shock, switch off the mains power supply until installation is complete and AC power is supplied to this product.

    2. This product requires an un-switched AC power supply of 120-277V, 50/60Hz.

    3. Make sure all connections are in accordance with the National or Canadian Electrical code and any local regulations.

    4. To reduce the risk of electrical shock, disconnect both normal and emergency power supplies and connector of this product before servicing.

    5. It can provide minimum 90 minutes illumination under the emergency mode.

    6. The 18430X-X are UL Listed for field installation, and use with grounded, UL Listed, damp location rated fixtures.

    7. This product is suitable for use in dry or damp locations. Do not mount it near gas, heaters, air outlets or other hazardous locations.

    8. Use this product in -40°C minimum, 50°C maximum ambient temperatures (Ta).

    9. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that is not field replaceable. Contact the manufacturer for information or service.

    10. As this product contains batteries, please be sure to store it in an indoor environment of -20°C-30°C. It must be fully charged and discharged every 6 months from the date of purchase until it is officially put into use, then recharged 30-50% and stored for another 6 months, and so on. If the battery is not used for more than 6 months, it may cause excessive self-discharge of the battery, and the resulting reduction of battery capacity is irreversible. For products with separate battery and emergency module, please disconnect the connection between battery and module for storage. Due to its chemical properties, it is a normal situation for the battery capacity to decline naturally during use. Users should take this into account when choosing products.

    11. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition and void warranty.

    12. Do not use this product for other than intended use.

    13. Installation and service should be performed by qualified service personnel.

    14. This product should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.

    15. Ensure product compatibility before final installation. Wiring should be strictly in accordance with the wiring diagram, wiring errors will damage the product. A case of safety accident or product failure caused by users’ illegal operation does not belong to the scope of customer complaint acceptance, compensation or product quality assurance.
