Universal Fluorescent Emergency Ballast 184010-1
7 views
Short Description:
184010-1 CE and UL Universal Fluorescent Emergency Ballast with selectable battery pack. Perfectly compatible with most 2‘- 4’ single bipin T8 to T12, 17W, 18W, 32W, 36W, T5 28W, compact 42W, circular 40W fluorescent lamps.
1. For emergency operation of fluorescent lamps.
2. Normal and emergency mode conversion within 0.3 seconds.
3. Over-discharge protection to extend the batteries life time.
4. External high temperature Ni-CD battery pack.
| Type | 184010-1-4C1.8 |
| Lamp type | Most 2‘- 4’ single bipin T8 to T12, 17W,18W,32W,36W, T5 28W, compact 42W, circular 40W fluorescent lamps |
| Rated voltage | 120-277 VAC |
| Rated current | 0.05A |
| Rated power | 3.5W |
| Operation frequency | 320kHz≥f≥50kHz |
| Power factor | 0.5 |
| Battery | Ni-Cd |
| Charging time | 24 hours |
| Discharge time | >90 Minutes |
| Charging current | 0.13A |
| Life time of module | 5 years |
| Charging cycles | >500 |
| Operation temperature | 0-50℃ (32°F-122°F) |
| Initial lumen output | 500LM |
| Efficiency | 70% |
| Wire | 0.75-1.5mm2 |
| EMC& FCC IC standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3; FCC part 18; ICES-005 |
| Safety standard | EN 61347-1, EN 61347-2-7; UL924, CSA C.22.2 No. 141 |

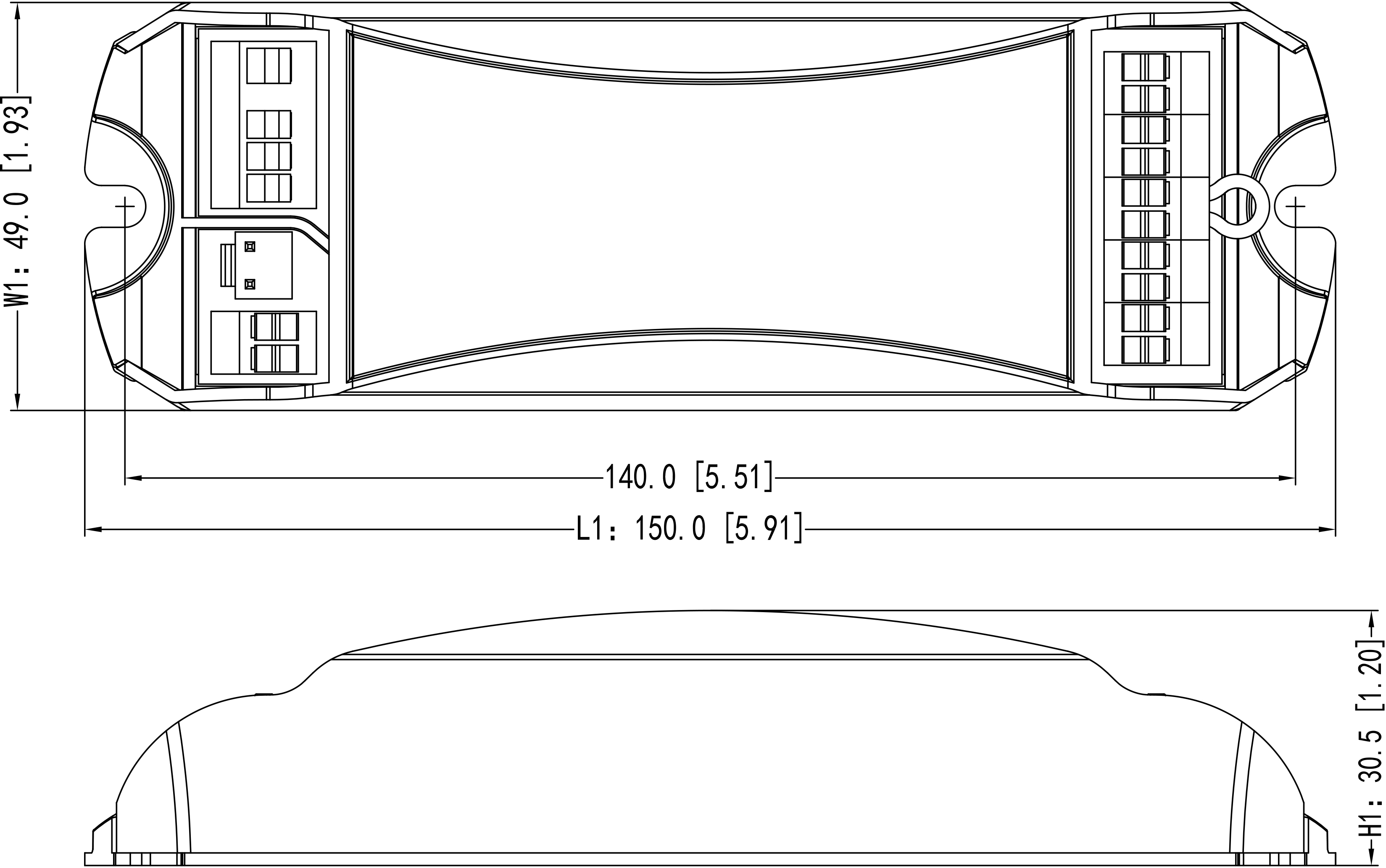

| Meas. Module mm [inch] | L150 [5.91] x W49 [1.93] x H30.5 [1.20] Mounting Center: 140 [5.51] |

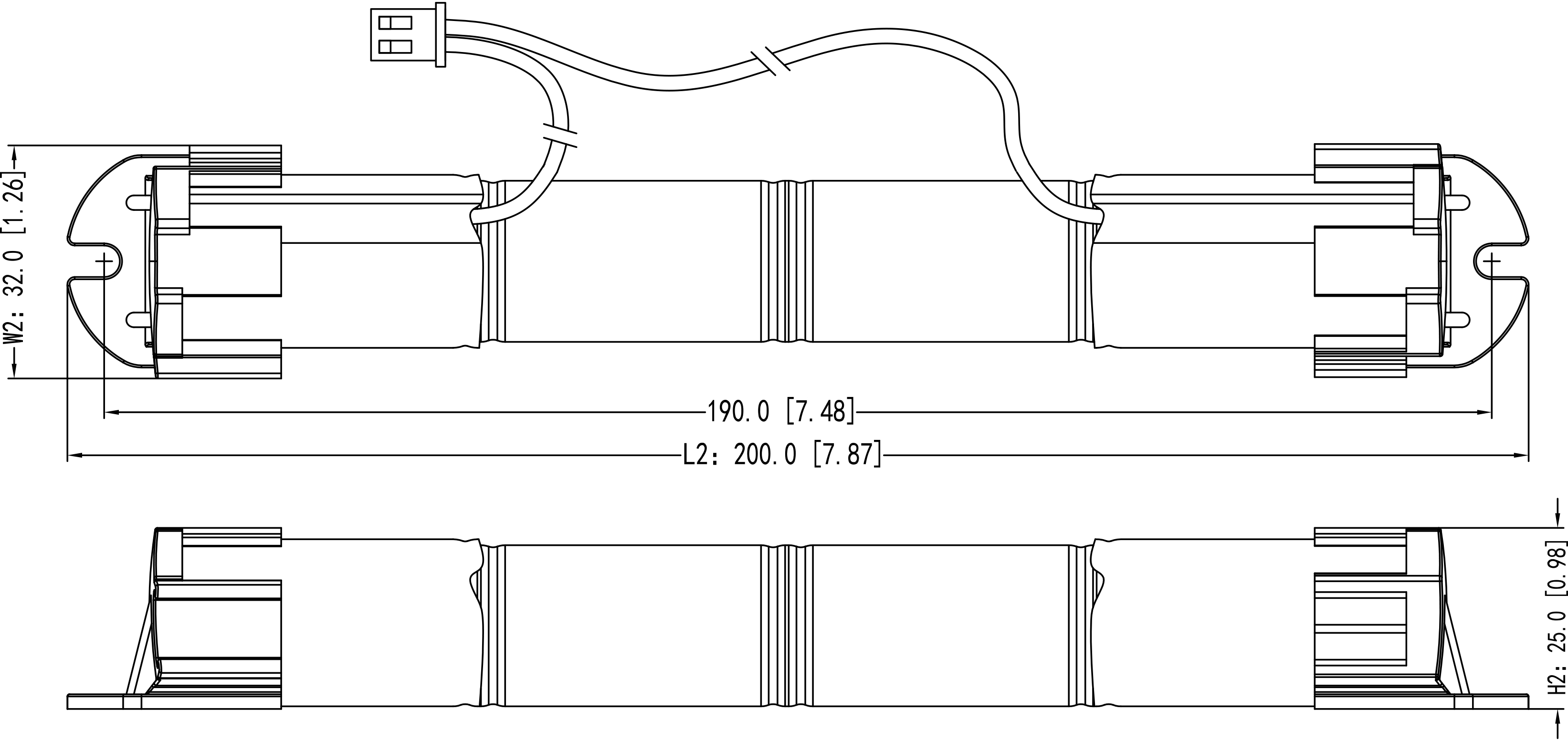

| Meas. Battery pack mm [inch] | L200 [7.87] x W32 [1.26] x H25 [0.98] Mounting Center: 190 [7.48] |
| Item No. | L1 mm [inch] | W1 mm [inch] | H1 mm [inch] | L2 mm [inch] | W2 mm [inch] | H2 mm [inch] | Weight kg [lbs] |
| 184010-1-4C1.8 | 150 [5.91] | 49 [1.93] | 30.5 [1.20] | 200 [7.87] | 32 [1.26] | 25 [0.98] | 0.38 [0.84] |
Dimensions in mm [inch]
Tolerance: ±1mm [0.04"]
