IP65 Fluorescent Wind Power Light IP65 FLUO 2x18W 2x36W
Short Description:
CE IP65 Fluorescent Wind Power Light 2x18W 2x 36W, IP65 Waterproof Light. IP65 Emergency Light, Emergency Kit for Wind Tower, IK8 Waterproof Light, Emergency Light, Light for Cold Weather. GE 109W1982P005, GE 109W1982P006, GE 109W1982P007, GE 109W1982P008
Housing made of reinforced polyester glass fiber (GRP)
High transparent and impact resistant PC diffuser
Both standard and emergency modes available
Operation and survive in extremely cold temperature down to minus 40 degrees (-40°C /-40°F)
CE EMC, CE LVD approved
With Philips or equivalent brands fluorescent lamps and electronic ballast EEI=A2
IP65 rating
2X18W
| Item no. | FL02H218-2 | FL02I218-2 | FL02H218-2-H | FL02J218-2 |
| GE part number | 109W1982P005 | 109W1982P006 | 109W1982P007 | 109W1982P008 |
| Characteristics | 2x18W Light, Standard Weather (SW) | 2x18W Light, Emergency Backup, SW | 2x18W Light, Heater, Cold Weather (CW) | 2x18W Light, Emergency Backup and Heater, CW |
| Lamp type | Fluorescent Lamp T8 2×18W | |||
| Rated voltage | 220-240VAC 50/60Hz | |||
| Input power | 36W | 42W | 36W | 42W |
| - | - | 76W (Heater Works) | 84W (Heater Works) | |
| Input current | 0.19-0.13A | 0.20-0.14A | 0.19-0.13A | 0.20-0.14A |
| - | - | 0.32-0.35 (Heater Works) | 0.35-0.38 (Heater Works) | |
| Power factor | >0.98 | >0.95 | >0.98 | >0.95 |
| Battery voltage | / | 1.8Ah, 4.8V | / | 1.8Ah, 4.8V |
| Charging time | / | 24H | / | 24H |
| Discharge time | / | >90 minutes | / | >90 minutes |
| Operation temperature | -15~50℃ | -15~50℃ | -30~50℃ | -30~50℃ |
| Survival temperature | -20~60℃ | -20~60℃ | -40~60℃ | -40~60℃ |
| Lumen output | 1800LM | |||
| Battery life time | / | 5 years | / | 5 years |
| Abnormal protection | short-circuit Protection with auto-reset | |||
| Applicable standards | EN60598-1, EN60598-2-1, EN61347-1, EN61347-2-7, EN55015, EN61000-3-2, EN61000-3-3, EN61547, IEC60721-3-3; IEC60721-3-3 class 3C1, class 3Z7 & class 3S1 | |||
2X36W
| Item No | FL02H236-2 | FL02I236-2 | FL02H236-2-H | FL02J236-2 |
| GE part No. | 108W9547P006108W9547P008 | 108W9547P004108W9547P005 | ||
| Characteristics | 2x36W Light, Standard，Standard Weather (SW) | 2x36W Light, Emergency Backup, SW | 2x36W Light, Heater, Cold Weather (CW) | 2x36W Light, Emergency Backup and Heater, CW |
| Lamp type | Fluorescent Lamp T8 2x36W | |||
| Input voltage | 220-240VAC 50/60Hz | |||
| Input power | 72W | 75W | 72W | 75W |
| - | - | 112W (Heater Works) | 115W (Heater Works) | |
| Input current | 0.30-0.33A | 0.31-0.34A | 0.30-0.33A | 0.31-0.34A |
| - | - | 0.47-0.51A (Heater Works) | 0.48-0.52A (Heater Works) | |
| Power factor | >0.98 | >0.95 | >0.98 | >0.95 |
| Battery voltage | - | 1.8Ah, 4.8V | - | 1.8Ah, 4.8V |
| Charging time | - | 24H | - | 24H |
| Emergency time | - | >90 Minutes | - | >90 Minutes |
| Operation temperature | -15~50℃ | -15~50℃ | -30~50℃ | -30~50℃ |
| Survival temperature | -20~60℃ | -20~60℃ | -40~60℃ | -40~60℃ |
| Lumen output | 3600LM | |||
| Battery life time | - | 5 years | - | 5 years |
| Abnormal protection | short-circuit Protection with auto-reset | |||
| Applicable standards | EN60598-1, EN60598-2-1, EN61347-1, EN61347-2-7, EN55015, EN61000-3-2, EN61000-3-3, EN61547, IEC60721-3-3; IEC60721-3-3 class 3C1, class 3Z7 & class 3S1 | |||
FL02H218-2/FL02H236-2: Standard Luminaire, with CE approved Philips electronic ballast
FL02H218-2-H/FL02H236-2-H: Standard + Heating Luminaire, with CE approved Philips electronic ballast, automatic heating system

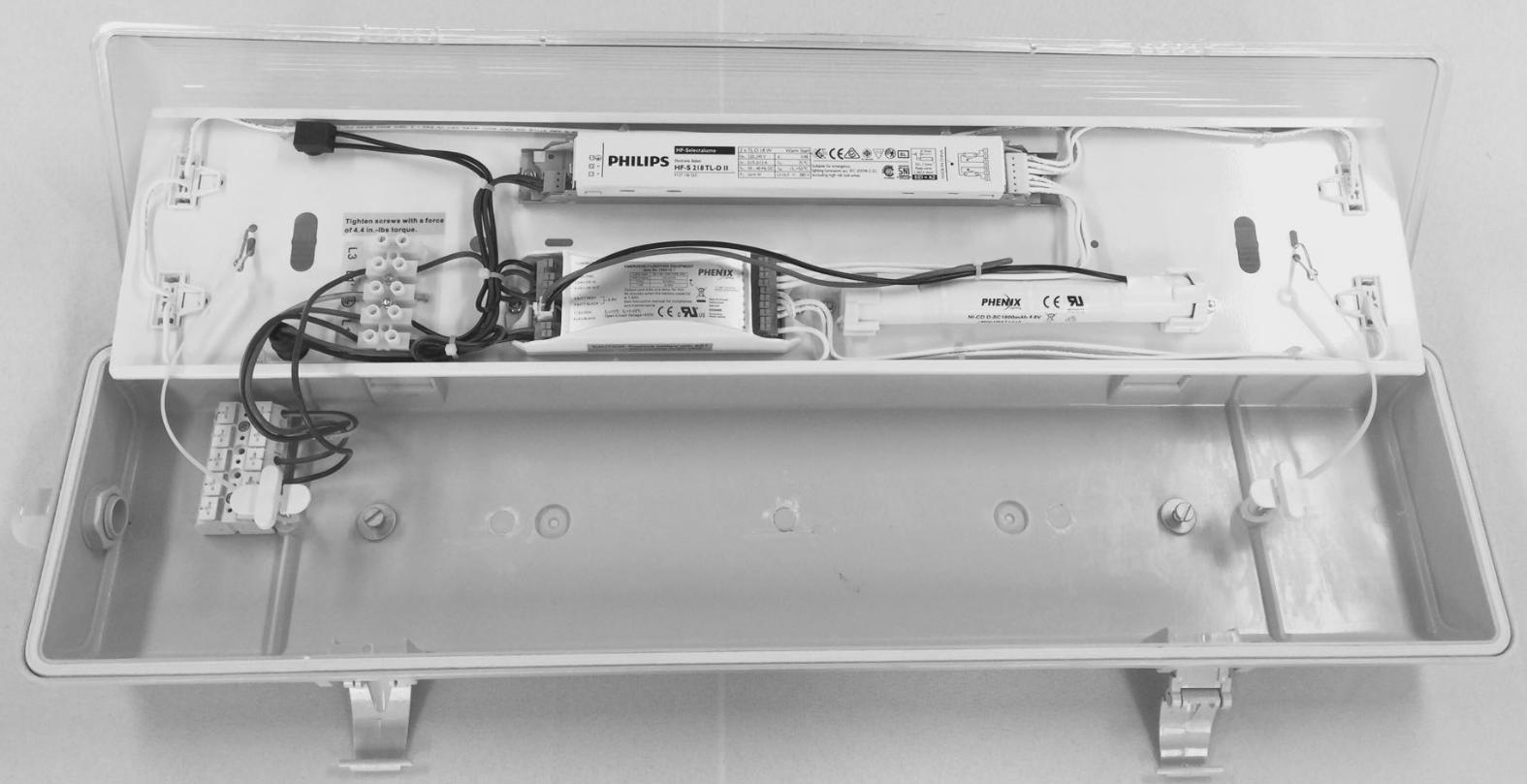

FL02I218-2/FL02I236-2: Emergency Luminaire, with CE approved electronic ballast and emergency module
FL02J218-2/FL02J236-2: Emergency + Heating Luminaire, with CE approved electronic ballast, emergency module and automatic heating system
Phenix Emergency module (type No.184010-1) is CE and UL approved. Battery pack is replaceable.
The automatic heating system is used to ensure the luminaire to work well under arctic weather condition.
GE product description added (without fluorescent lamps)：
109W1982P005：2x36W 230V/50Hz-Standard Luminaire, 2pcs M20 cable gland
109W1982P006：2x36W 230V/50Hz-Built in emergency battery function, 2pcs M20 cable gland
109W1982P007：2x18W 230V/50Hz-Built in heater, 2pcs M20 cable glands
109W1982P008：2x18W 230V/50Hz-Built in emergency battery function, heater, 2pcs M20 cable glands
109W1982P102：Fluorescent lamp. T8, 18W
108W9547P006: 2x36W 230V/50Hz-Built in heater, 2pcs M20 cable glands
108W9547P008: 2x36W 230V/50Hz-Built in heater, 1pc M20 cable gland
108W9547P004: 2x36W 230V/50Hz-Built in emergency battery function, heater, 1pc M20 cable gland
108W9547P005: 2x36W 230V/50Hz-Built in emergency battery function, heater, 2pcs M20 cable glands

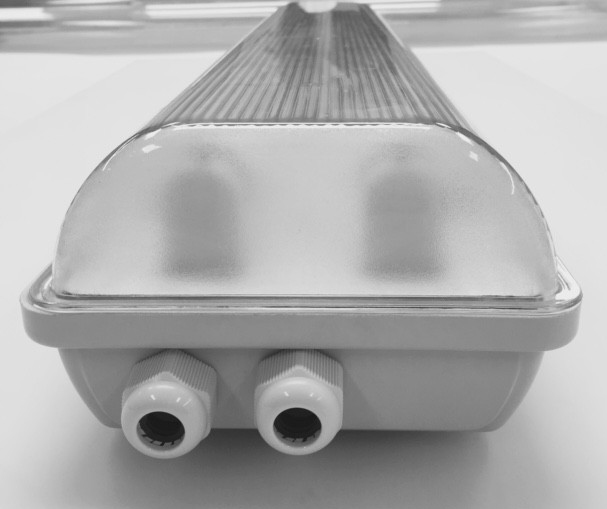

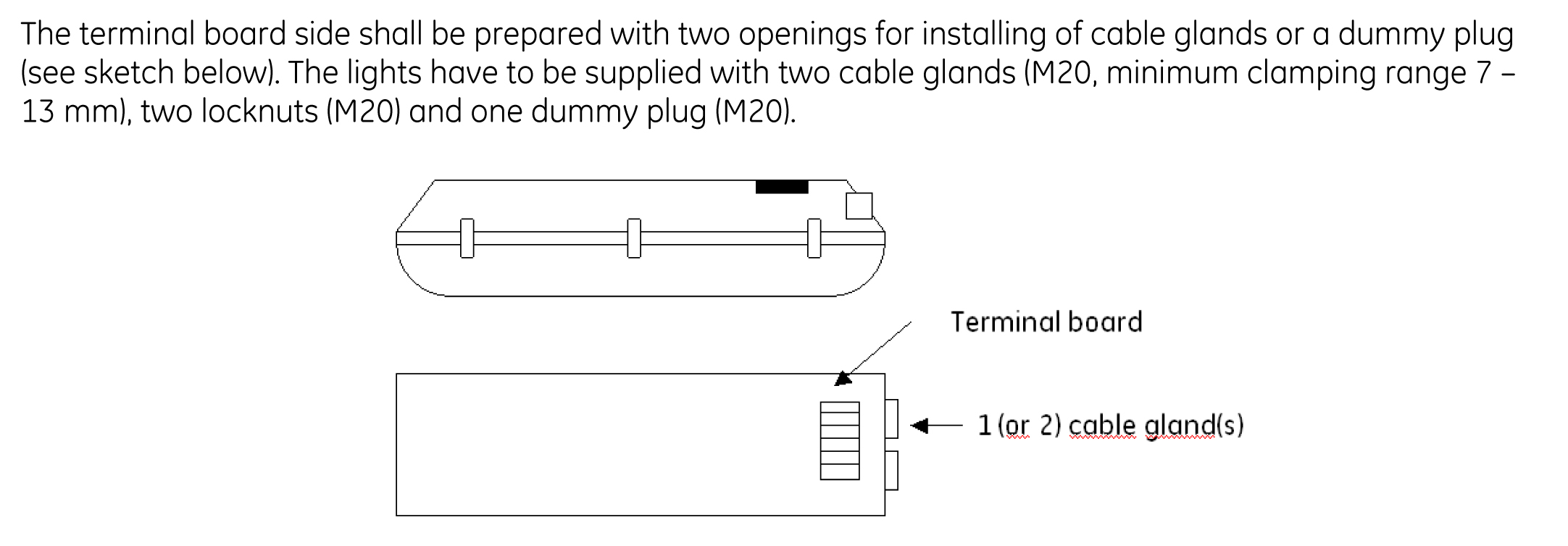

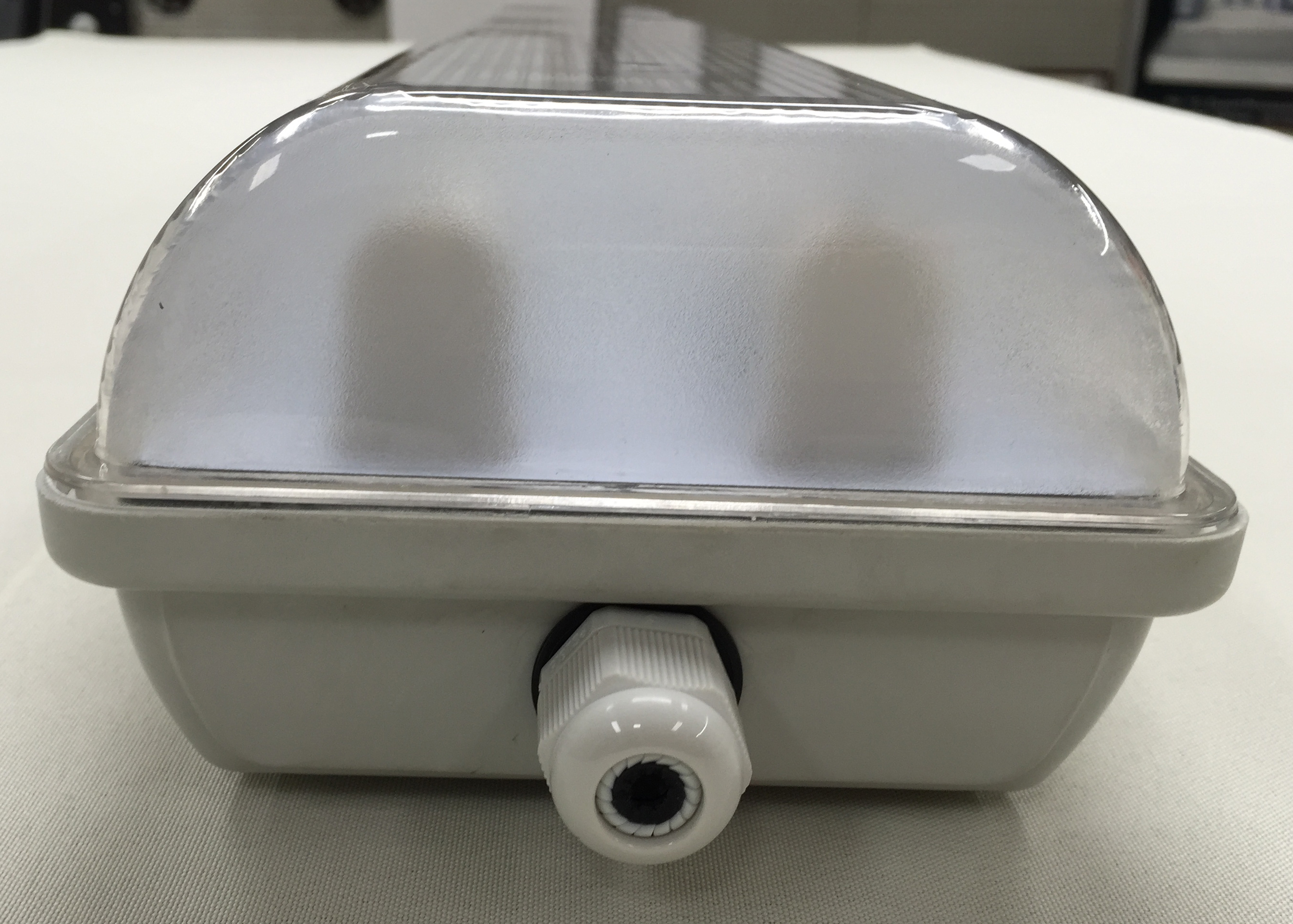

1 or 2PCS M20 cable gland on each side

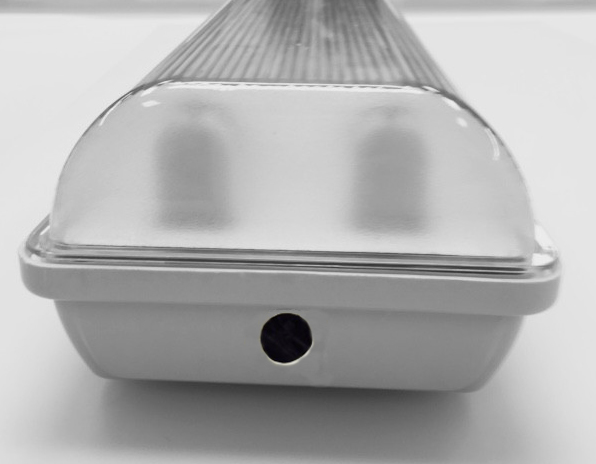

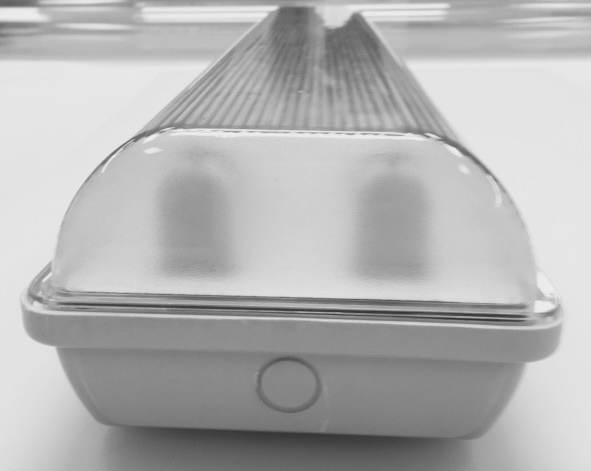

1PC M20 punching hole on other side

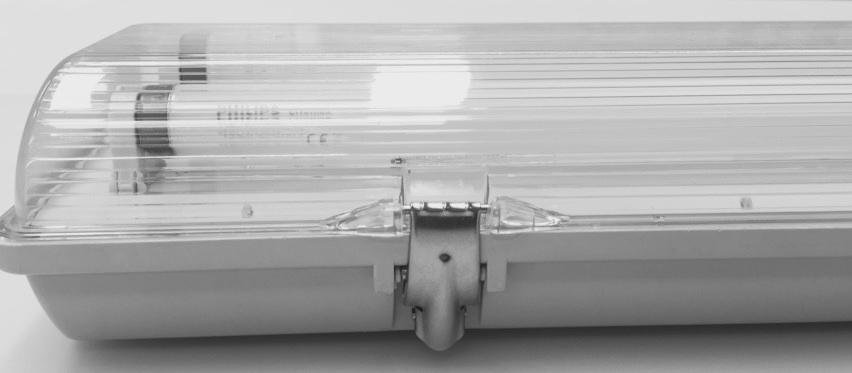

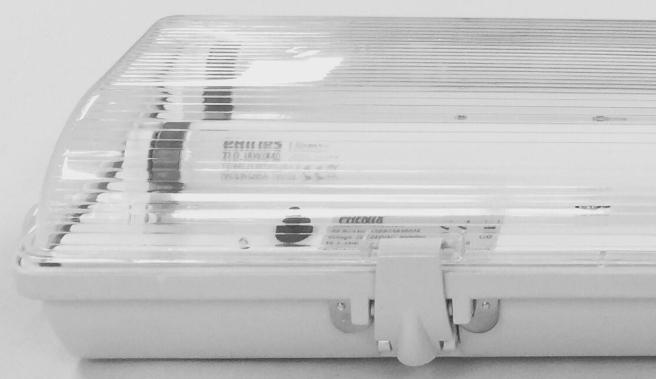

PC plastic or stainless steel clips with anti-falling off structure

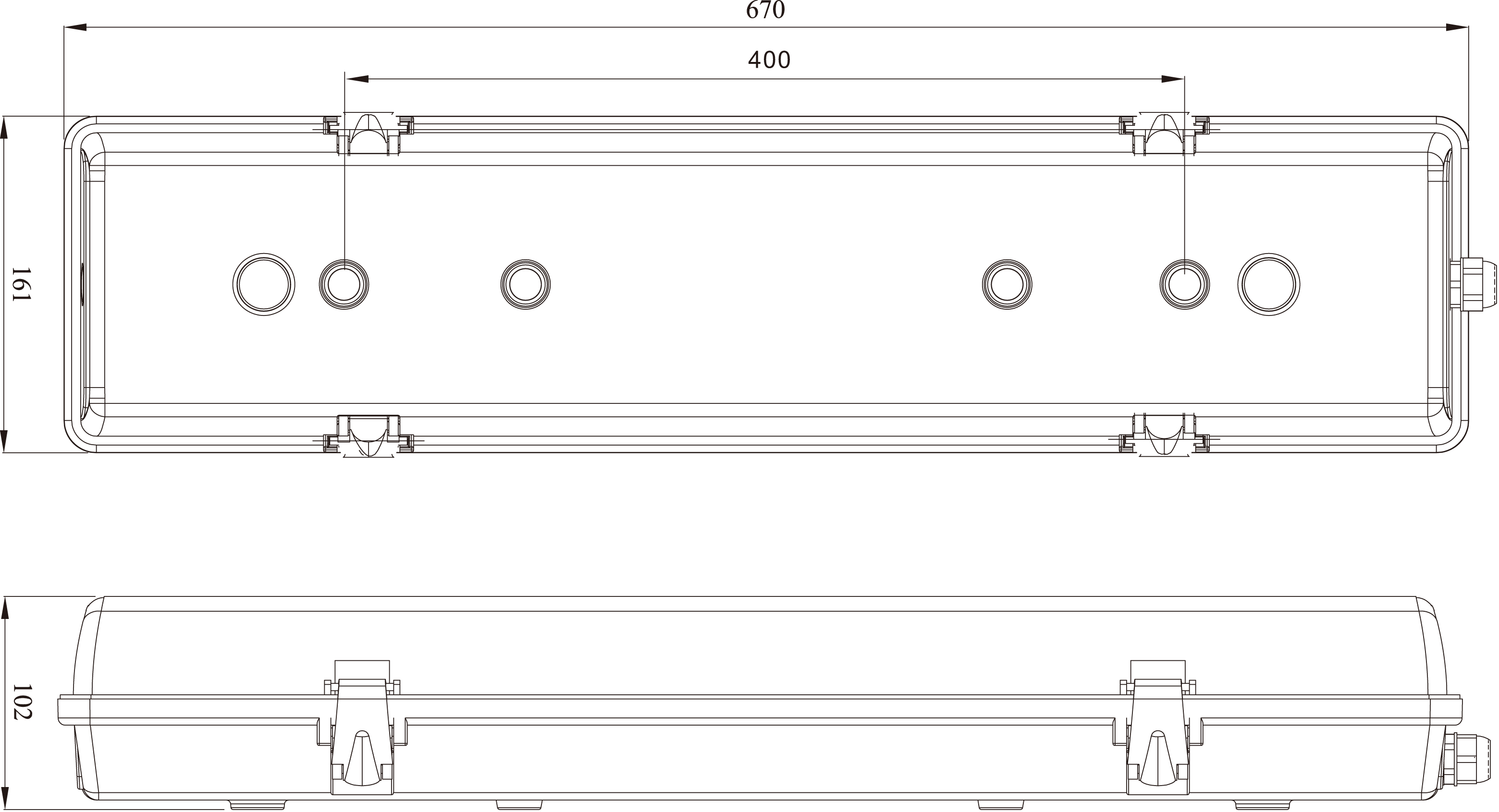

FL02H218-2/FL02I218-2/ FL02H218-2-H/FL02J218-2:

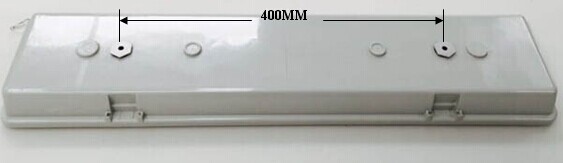

Mounting distance: 400mm
2pcs mounting holes ready for M6 crosshead or inner hexagon head bolts.

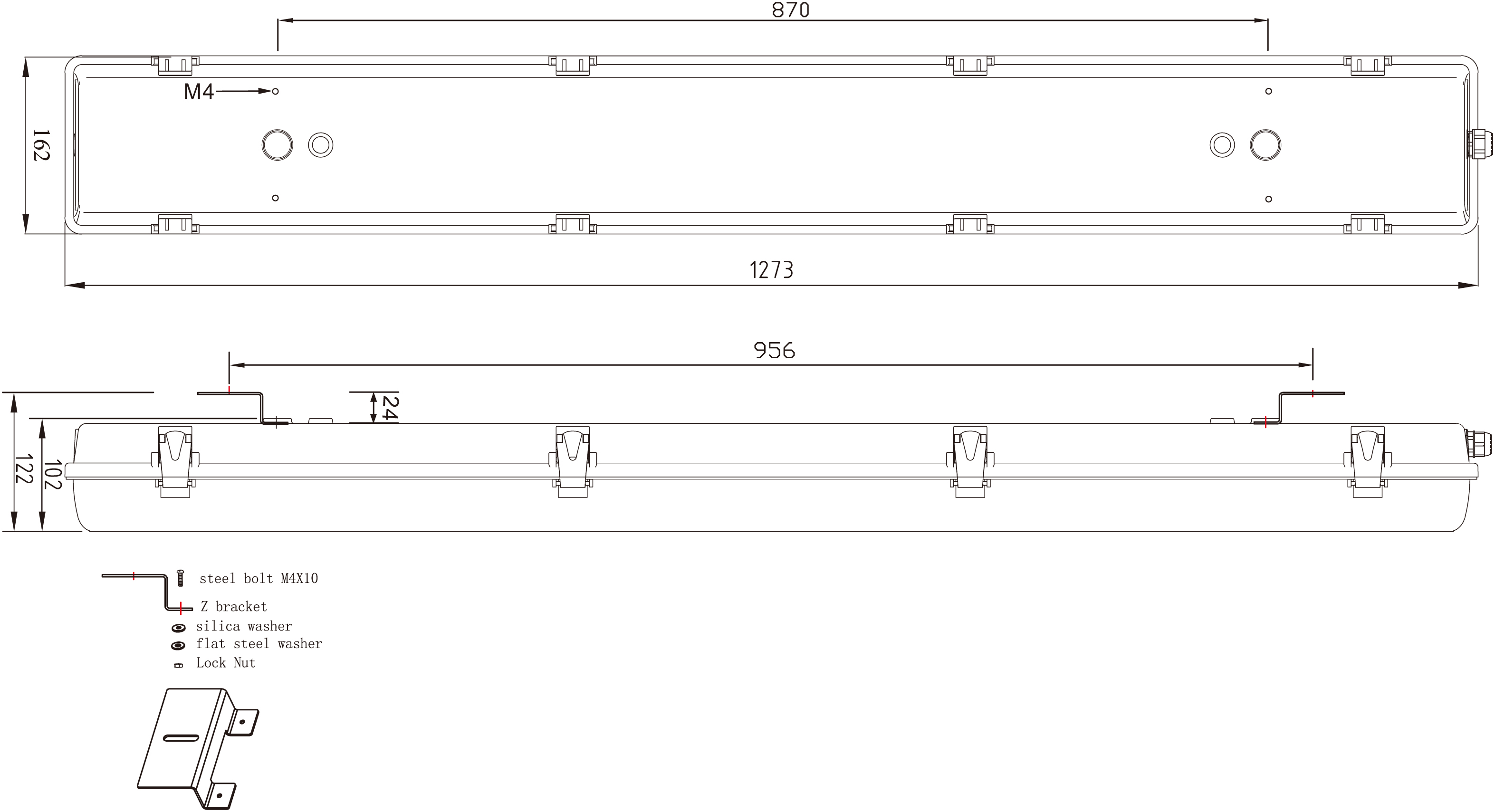

FL02H236-2/FL02I236-2/ FL02H236-2-H/FL02J236-2:

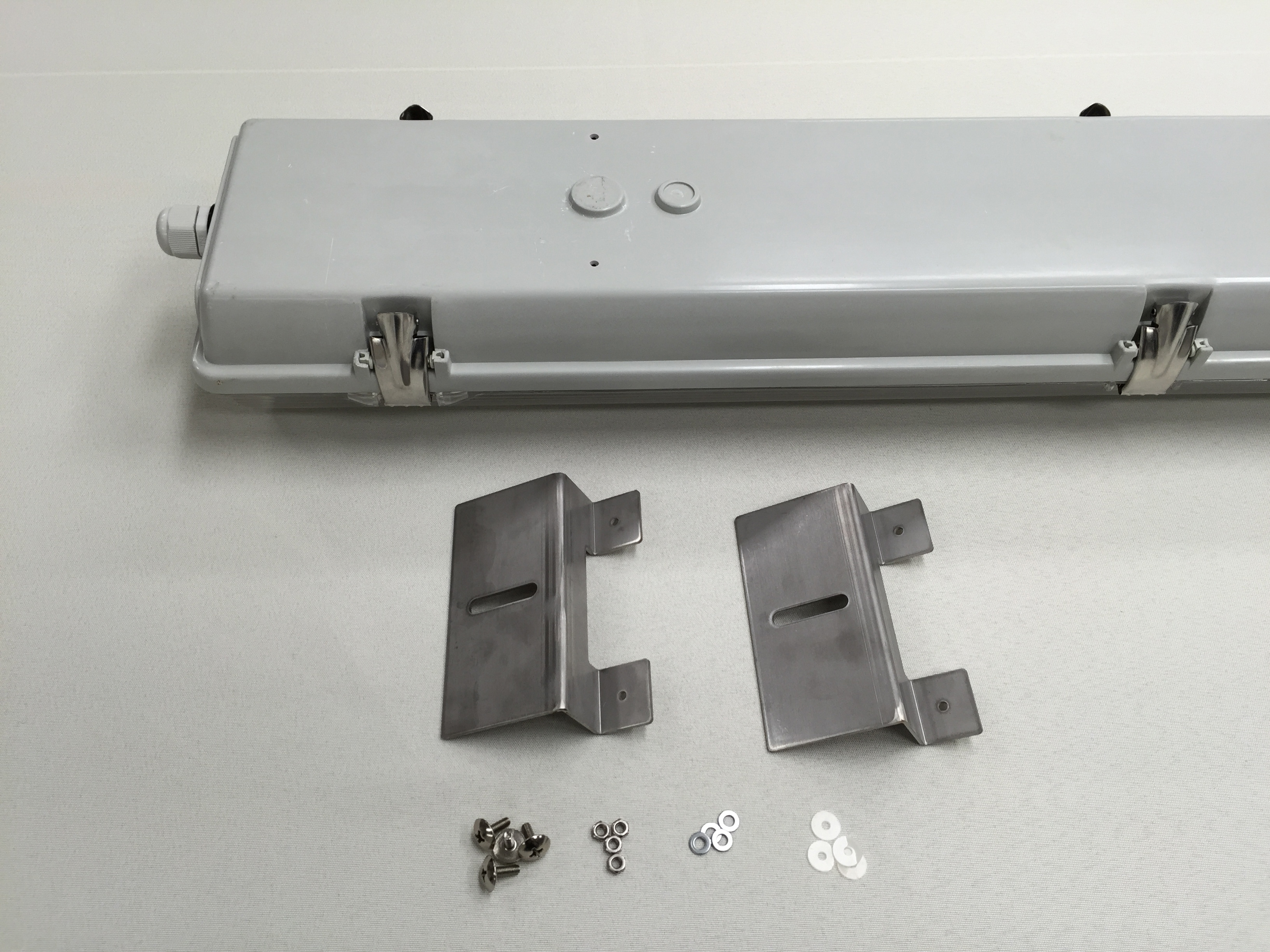

Z brackets, 4 holes M4 for the Z brackets)

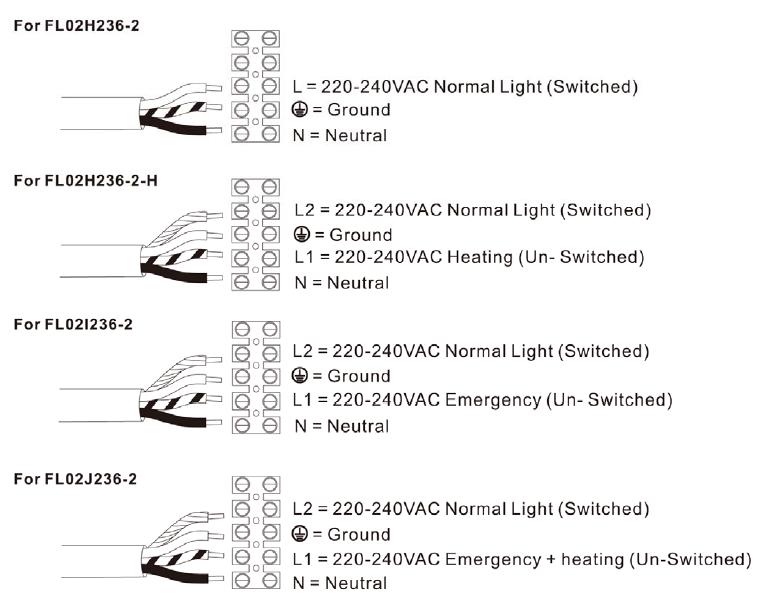

Input Voltage: 220-240VAC

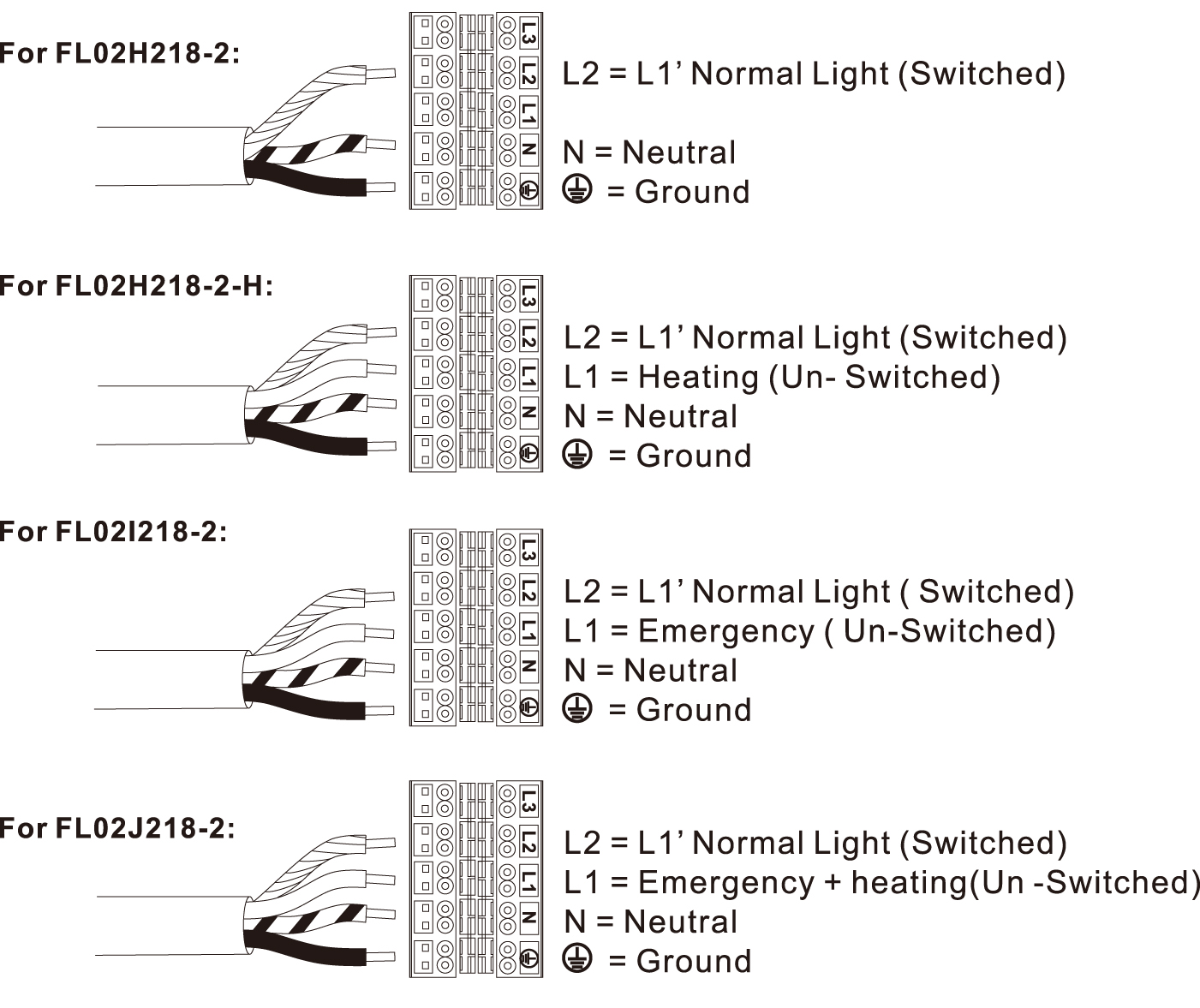

Remarks: L1′=L2=Normal Light (Switched)
Wind power system
Ships
Freezers
Any other harsh indoor and outdoor locations
